Description

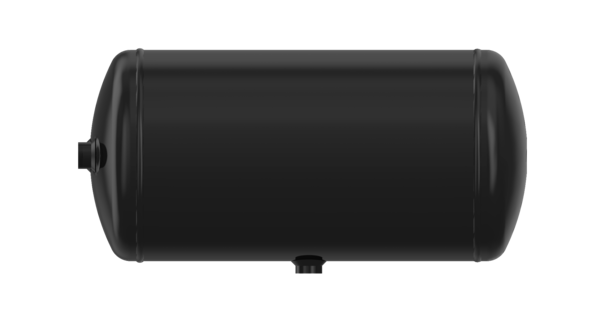

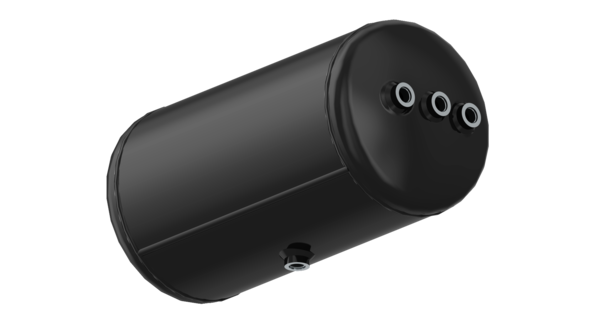

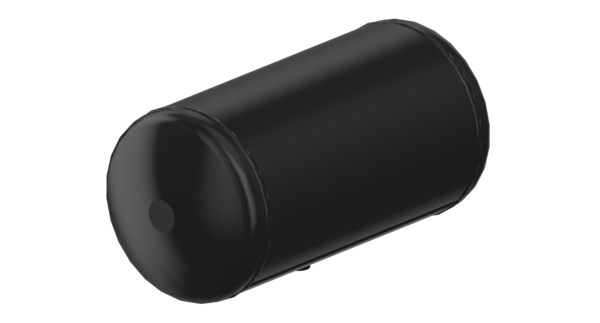

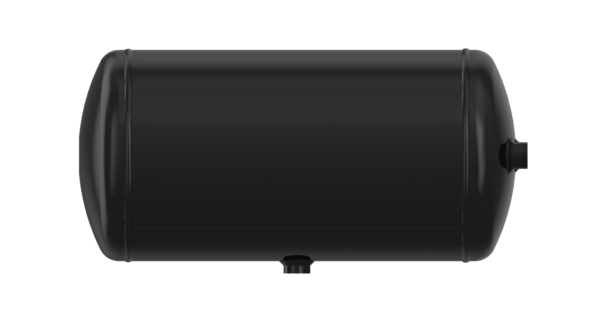

Air Reservoir 30 L Steel
Part Number: 9507300230
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 47.11 |
| Capacity | 30 L |
| Diameter | 276.0 mm |
| Length | 585 mm |
| Max. operating pressure | 15.5 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057885361821 |
| Size (mm x mm x mm) | 584.5 x 276 x 292 |
| UPC | 193133525448 |
| Weight (kg) | 9.6 |
| Weight (lb) | 21.16 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | A 006 432 5401 |
