Description

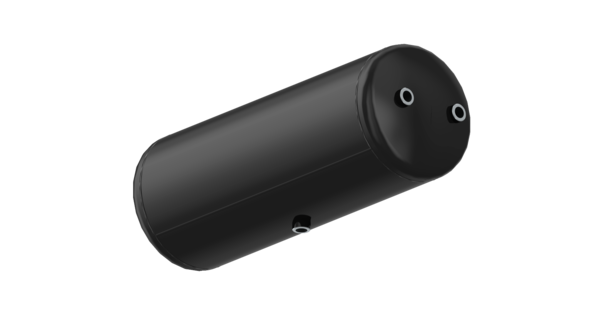

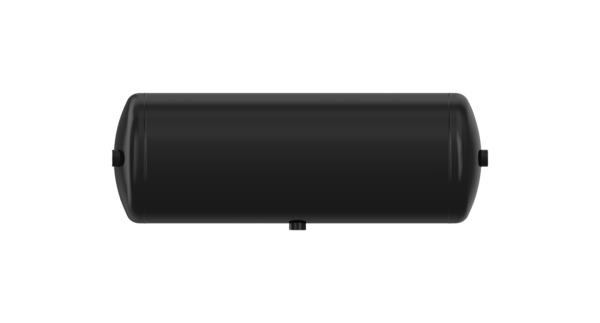

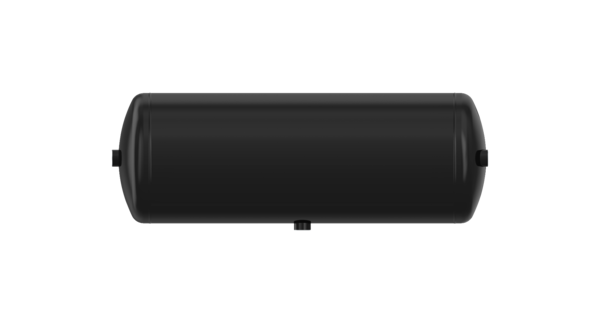

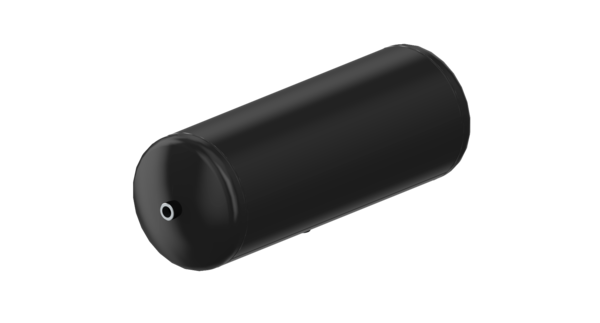

Air Reservoir 30 L Steel
Part Number: 9505100040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 45.7 |
| Capacity | 30 L |
| Color | Black |
| Design | CE |
| Diameter | 246.0 mm |
| Length | 709 mm |
| Max. operating pressure | 15.5 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057885305108 |
| Size (mm x mm x mm) | 709 x 246 x 262 |
| UPC | Z5 |
| Weight (kg) | 10 |
| Weight (lb) | 22.05 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CASE IH | 87015668 |
| DAF | 1506425 |
| EVOBUS | 8285417000 |
| GOLDHOFER | 200013 |
| HENDRICKSON | NB1682 |
| IVECO | 3307713R1 |
| IVECO | 98461957 |
| JOHN DEERE | 2480008 |
| JOHN DEERE | WZ52480008F |
| KEMPF | 2010001 |
| LEYLAND DAF | ACHA989 |
| LIEBHERR | 502930101 |
| NEOPLAN | 11018669 |
| NEOPLAN | 07030030 |
| NOOTEBOOM | 301006 |
| PACCAR | 1506425 |
| RENAULT | 5021170368 |
| SCANIA | 2089989 |
| SEDDON ATKINSON | 65406S1 |
| TEREX | 19215340 |
| VDL | 20286152 |
