Description

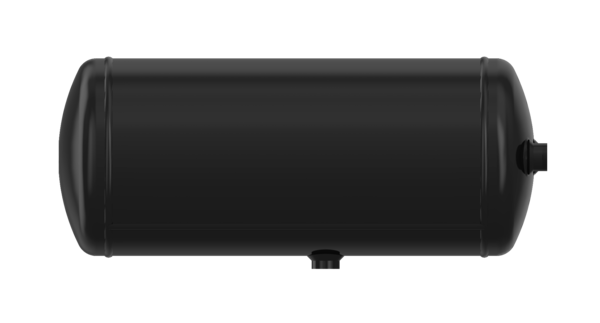

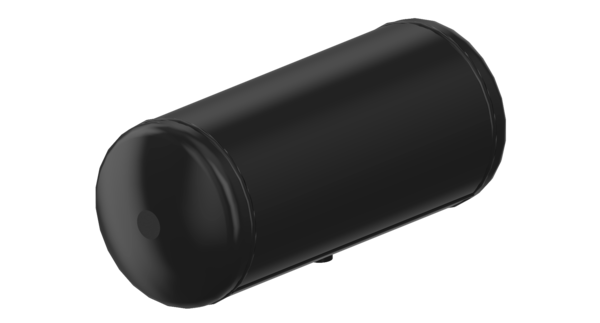

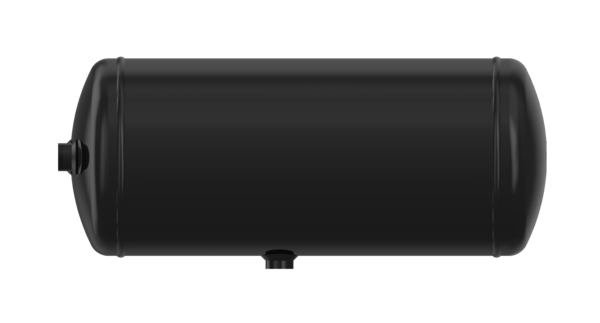

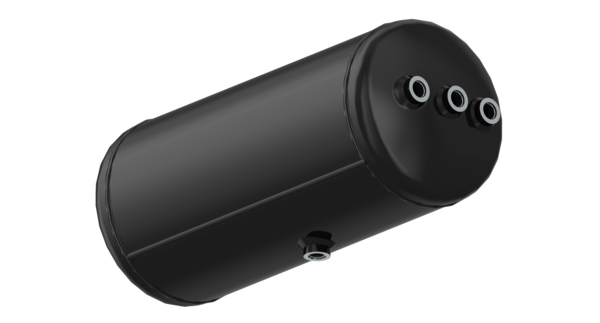

Air Reservoir 25 L Steel
Part Number: 9505250070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 39.09 |
| Capacity | 25 L |
| Diameter | 246.0 mm |
| Length | 607 mm |
| Max. operating pressure | 15.5 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057885361654 |
| Size (mm x mm x mm) | 606.5 x 246 x 262 |
| UPC | 193133525547 |
| Weight (kg) | 8.6 |
| Weight (lb) | 18.96 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAIMLER | A 007 432 0301 |
