Description

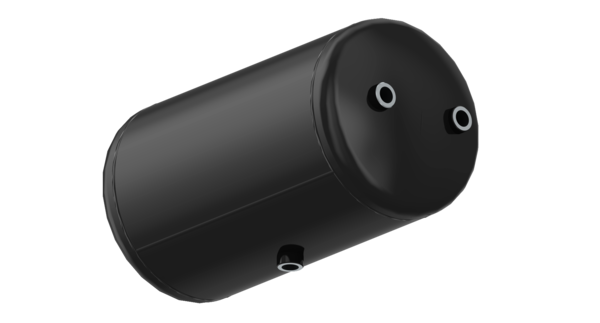

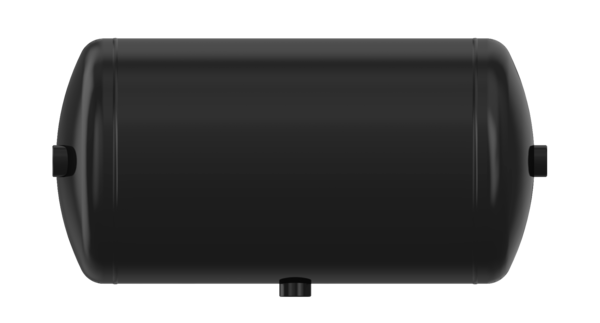

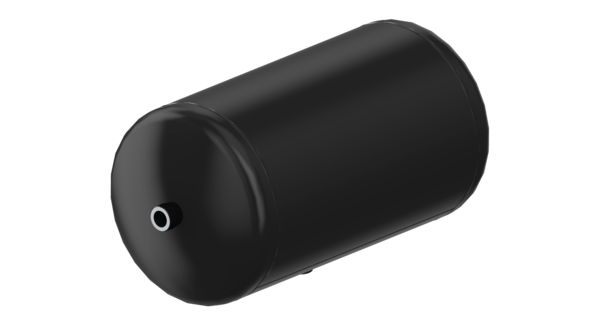

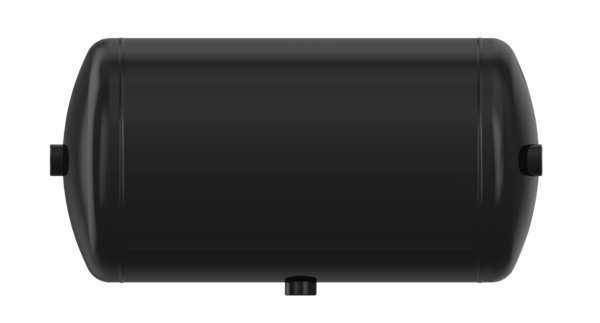

Air Reservoir 20 L Steel
Part Number: 9505070010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 28.18 |
| Capacity | 20 L |
| Color | Black |
| Design | CE |
| Diameter | 246.0 mm |
| Length | 495 mm |
| Max. operating pressure | 15.5 bar |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057885305139 |
| Size (mm x mm x mm) | 490 x 250 x 230 |
| UPC | 193133508496 |
| Weight (kg) | 7.5 |
| Weight (lb) | 16.5346 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 6549796 |
| CASE IH | 5300989C1 |
| CASE IH | 3402321R1 |
| CASE IH | 84459203 |
| DAF | 1505415 |
| DEUTZ | 04401040 |
| FENDT | F281880020110 |
| GOLDHOFER | 200012 |
| HENDRICKSON | 9505200030 |
| IVECO | 3307712R1 |
| JOHN DEERE | AZ50947 |
| JOHN DEERE | DC54370 |
| KEMPF | 2010009 |
| KENWORTH | S950-520-003-0 |
| KOMATSU | 57619740 |
| KÄSSBOHRER | 82855470000 |
| MAN | 88514016204 |
| MAN | 90810129112 |
| MERITOR | S9505200030 |
| NOOTEBOOM | 301005 |
| PACCAR | 1505415 |
| PETERBILT | S950-520-003-0 |
| RENAULT | 7700053246B |
| RENAULT | 7700053246 |
| SCANIA | 1935525 |
| SCHMITZ CARGOBULL | 9505200030 |
| TEREX | 57619740 |
| VAN HOOL | 637200250 |
