Description

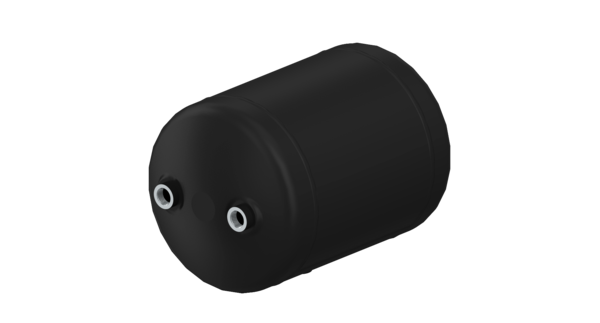

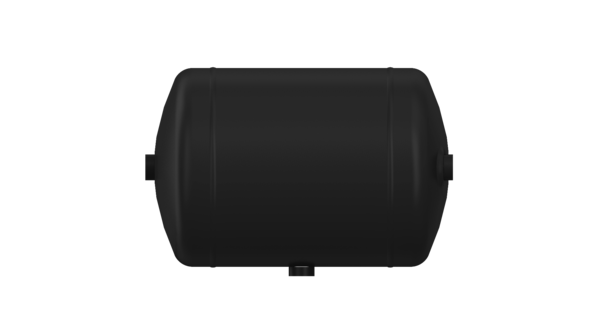

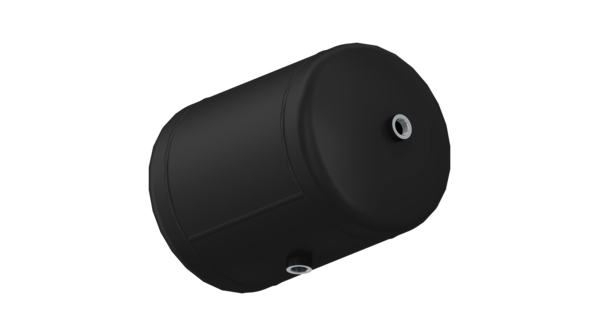

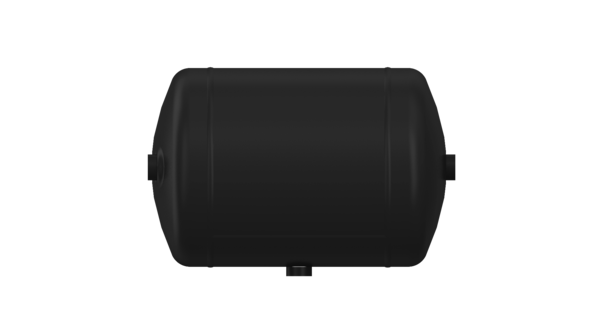

Air Reservoir 15 L Steel
Part Number: 9505150030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Body material | Steel |
| Calculated Volume (dm³) | 26.8276 |
| Capacity | 15 L |
| Color | Black/Black |
| Design | CE |
| Diameter | 246.0 mm |
| Length | 380 mm |
| Max. operating pressure | 15.5 bar |
| Port threads | M22 x 1.5 |
| Ports | 4 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -50°C to +100°C |
| GTIN | 04057875293866 |
| Size (mm x mm x mm) | 411 x 258 x 253 |
| UPC | 193133365778 |
| Weight (kg) | 5.6 |
| Weight (lb) | 12.3459 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 65497910 |
| CASE IH | 841709180 |
| DAF | 1524737 |
| IVECO | 3307729R1 |
