Description

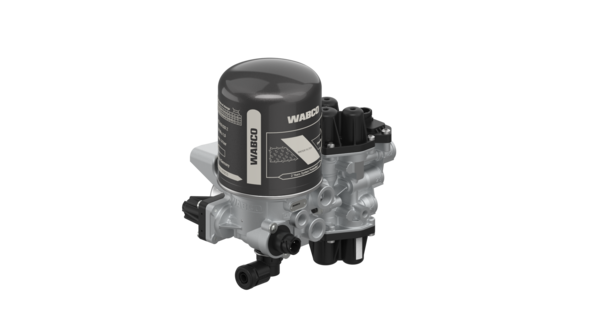

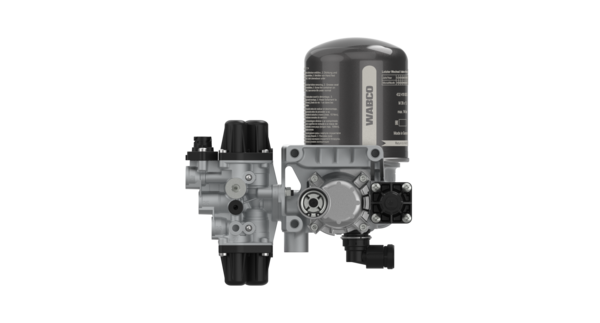

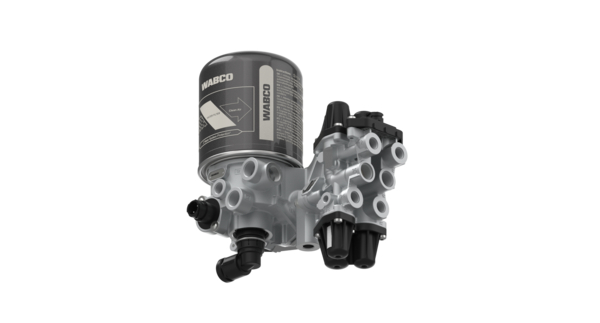

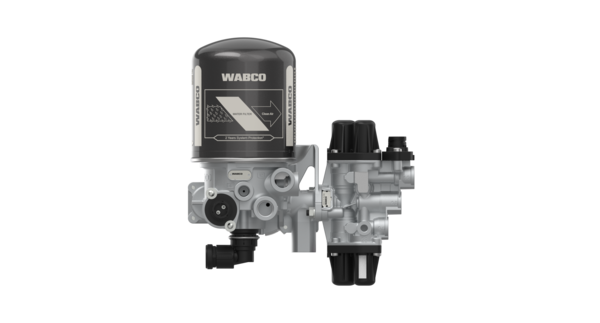

Air Processing Unit
Part Number: 9325001030
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Air dryer | 4324160030 |
| Back flow | 0.4 bar |
| Calculated Volume (dm³) | 39.99 |
| Closing pressure static 21 | 6.5 bar |
| Closing pressure static 22 | 6.5 bar |
| Closing pressure static 23 | 5.9 bar |
| Closing pressure static 24 | 5.9 bar |
| Comments | MCPV pressure sensor: Yes (DIN bayonet 72585, 7-pin) |
| Cut-out pressure | 12.5 bar |
| Electrical connection | DIN 72585 A1-2.1-1-Sn/K2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| MCPV | 9347050230 |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 7.4 bar |
| Opening pressure 22 | 7.4 bar |
| Opening pressure 23 | 7.4 bar |
| Opening pressure 24 | 7.4 bar |
| Operational range | 1.0 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 12 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 25 | M16 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Silencer | Elbow for PA tube connection |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875289012 |
| Size (mm x mm x mm) | 372 x 372 x 289 |
| UPC | 193133360483 |
| Weight (kg) | 6.52 |
| Weight (lb) | 14.37 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 5801335175 |
| IVECO | 41211387 |
| IVECO | 41211389 |
| IVECO | 41211395 |
| IVECO | 41211397 |
| IVECO | 5801414918 |
| IVECO | 5801414919 |
| IVECO | 5801414920 |
| IVECO | 5801414926 |
| IVECO | 5801414927 |
| IVECO | 5801414928 |
| IVECO | 41211388 |
| IVECO | 41211396 |
| IVECO | 41033009 |
| IVECO | 41211267 |
