Description

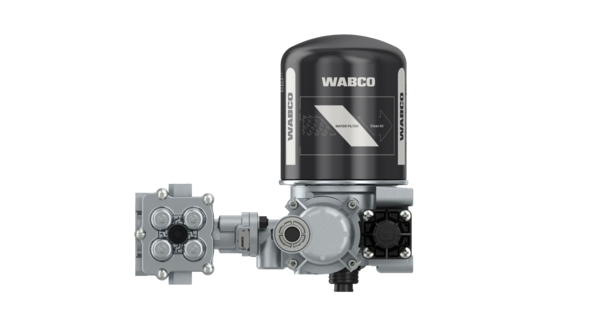

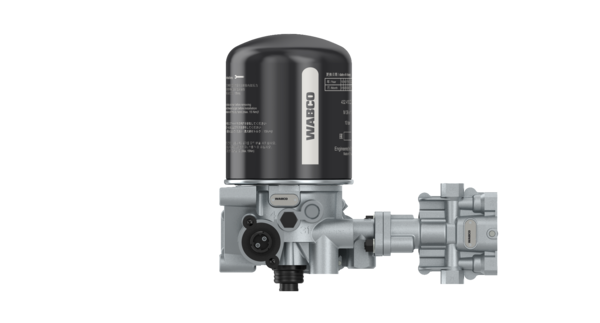

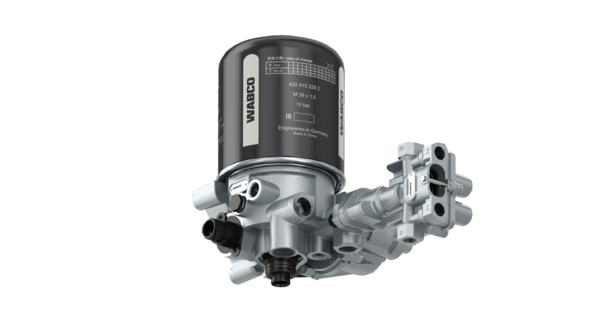

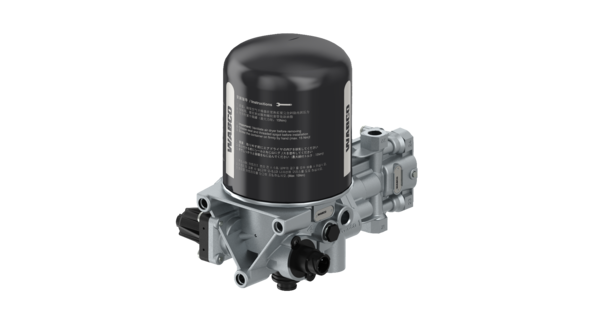

Air Processing Unit
Part Number: 9325000520
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Air dryer | 4324150510 |
| Back flow | 0.4 bar |
| Calculated Volume (dm³) | 16.9 |
| Closing pressure dynamic 21 | 5.5 bar |
| Closing pressure dynamic 22 | 5.5 bar |
| Closing pressure dynamic 23 | 5.5 bar |
| Closing pressure dynamic 24 | 5.5 bar |
| Comments | No MCPV pressure sensor |
| Cut-out pressure | 9.5 bar |
| Electrical connection | DIN 72585 A1-2.1-1-Sn/K2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| MCPV | 9347141520 |
| Max. operating pressure | 10.0 bar |
| Opening pressure 21 | 6 bar |
| Opening pressure 22 | 6 bar |
| Opening pressure 23 | 7 bar |
| Opening pressure 24 | 6 bar |
| Operational range | 0.8 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | 3/8″ NPTF |
| Port thread 22 | 3/8″ NPTF |
| Port thread 23 | 3/8″ NPTF |
| Port thread 24 | 3/8″ – 18 NPTF |
| Port thread 4 | M22 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 015 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Variable nominal flow rate | 16.00 – 35.00 (L/min) |
| Voltage | 24 V |
| GTIN | 04057875288824 |
| Size (mm x mm x mm) | 302 x 273 x 205 |
| UPC | 193133360162 |
| Weight (kg) | 5.298 |
| Weight (lb) | 11.68 |
OEM Cross References
| Brand | Reference No |
|---|---|
| HYUNDAI | 59550 8C502 |
| HYUNDAI | 59550 8C503 |
