Description

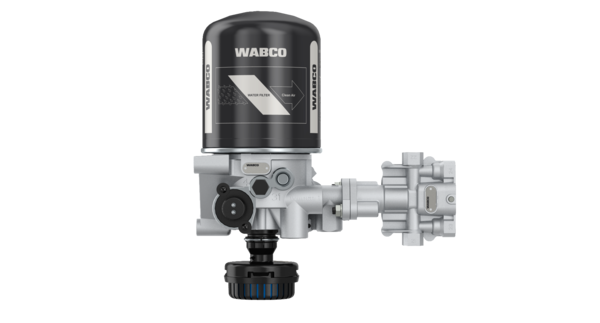

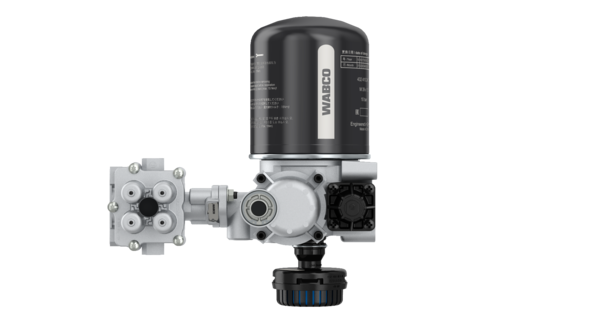

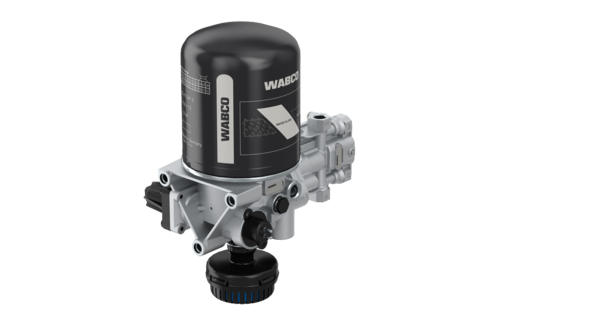

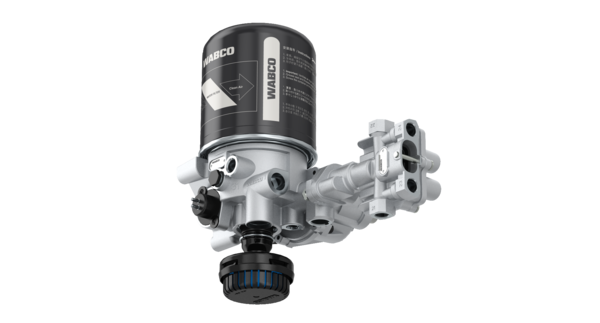

Air Processing Unit
Part Number: 9325001150
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Air dryer | 4324150670 |
| Back flow | 0.4 bar |
| Calculated Volume (dm³) | 20.44 |
| Closing pressure dynamic 21 | 6.0 bar |
| Closing pressure dynamic 22 | 6.0 bar |
| Closing pressure dynamic 23 | 6.0 bar |
| Closing pressure dynamic 24 | 6.0 bar |
| Comments | No MCPV pressure sensor |
| Cut-out pressure | 8.8 bar |
| Exhaust | Silencer 4324070150 |
| Heating connection | Kostal M27 x 1 |
| MCPV | 9347141510 |
| Max. operating pressure | 10.0 bar |
| Opening pressure 21 | 6.5 bar |
| Opening pressure 22 | 6.5 bar |
| Opening pressure 23 | 7.5 bar |
| Opening pressure 24 | 6.5 bar |
| Operational range | 0.7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 3 | Silencer 4324070150 |
| Port thread 4 | M12 x 1.5 |
| Port thread 6 | M27 x 1 |
| Product category | Device |
| Silencer | Silencer 432 407 015 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Variable nominal flow rate | 16.00 – 35.00 (L/min) |
| Voltage | 24 V |
| GTIN | 04057875289098 |
| Size (mm x mm x mm) | 335 x 305 x 200 |
| UPC | 193133359869 |
| Weight (kg) | 5.485 |
| Weight (lb) | 12.09 |
