Description

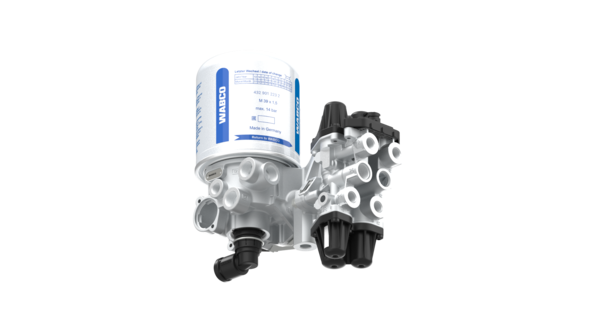

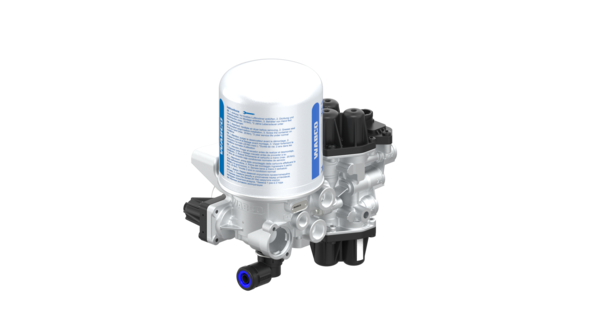

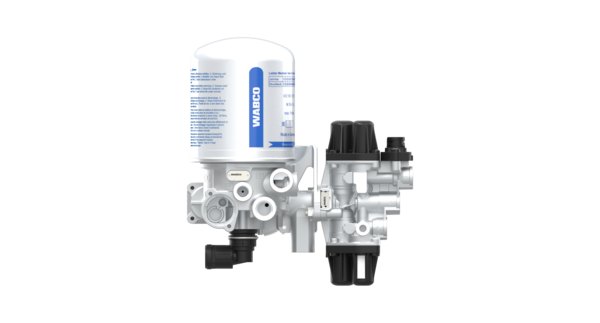

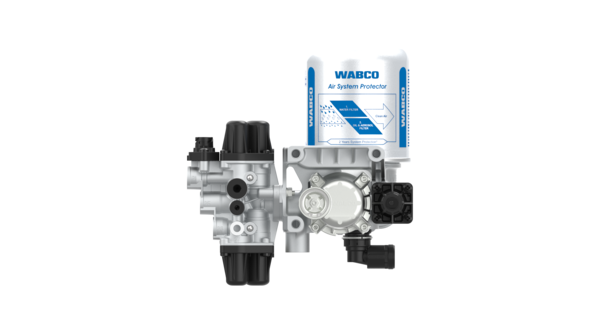

Air Processing Unit
Part Number: 9325001040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Air dryer | 4324160040 |
| Back flow | 0.5 bar |
| Calculated Volume (dm³) | 16.45 |
| Closing pressure static 21 | 6.5 bar |
| Closing pressure static 22 | 6.5 bar |
| Closing pressure static 23 | 3.8 bar |
| Closing pressure static 24 | 5.9 bar |
| Comments | MCPV pressure sensor: Yes (DIN bayonet 72585, 7-pin) |
| Cut-out pressure | 11.0 bar |
| Heating connection | Retrofittable |
| MCPV | 9347050210 |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 7.5 bar |
| Opening pressure 22 | 7.5 bar |
| Opening pressure 23 | 5.35 bar |
| Opening pressure 24 | 7.5 bar |
| Operational range | 1.2 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 12 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 25 | M16 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| Port thread 4 | M16 x 1.5 |
| Product category | Device |
| Silencer | Elbow for PA tube connection |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 7895851074477 |
| Size (mm x mm x mm) | 296 x 171 x 325 |
| UPC | 193133360452 |
| Weight (kg) | 6.344 |
| Weight (lb) | 13.99 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 5801411753 |
