Description

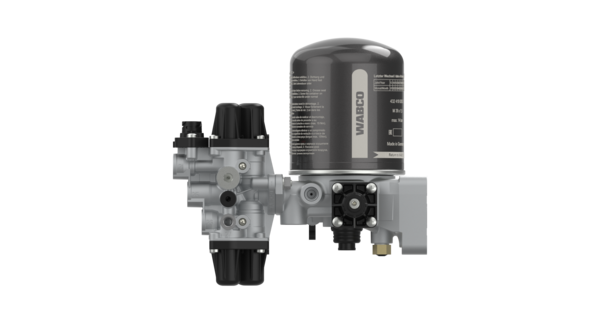

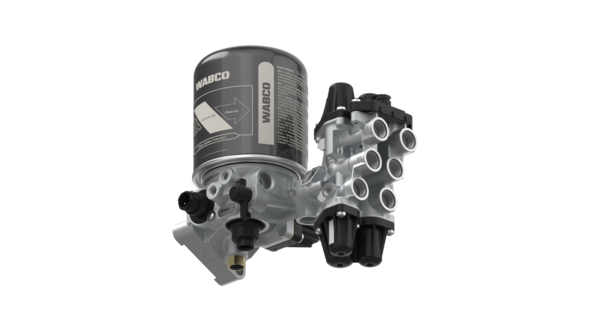

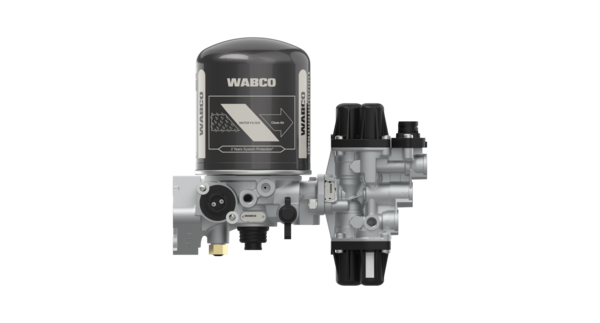

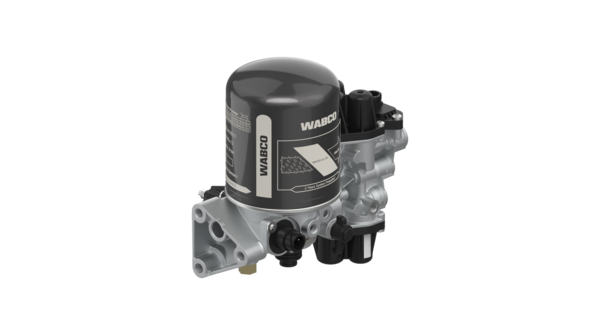

Air Processing Unit
Part Number: 9325000160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Air dryer | 9324000130 |
| Calculated Volume (dm³) | 17.2688 |
| Comments | MCPV pressure sensor: Yes (DIN bayonet 72585, 7-pin) |
| Cut-out pressure | 12.0 bar |
| Electrical connection | DIN 72585 A1-2.1-1-Sn/K2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| MCPV | 9347050050 |
| Max. operating pressure | 13.0 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 11 | M22 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M22 x 1.5 |
| Port thread 23 | M22 x 1.5 |
| Port thread 24 | M22 x 1.5 |
| Port thread 25 | M22 x 1.5 |
| Port thread 26 | M22 x 1.5 |
| Port thread 27 | M12 x 1.5 |
| Port thread 28 | M12 x 1.5 |
| Port thread 4/25 | M10 x 1 |
| Product category | Device |
| Silencer | No (432 407 015 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057875288640 |
| Size (mm x mm x mm) | 306 x 278 x 203 |
| UPC | 193133360131 |
| Weight (kg) | 5.749 |
| Weight (lb) | 12.674 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0024311515 |
| MERCEDES-BENZ | 0024311515 |
| MERCEDES-BENZ | A0024311515 |
