Description

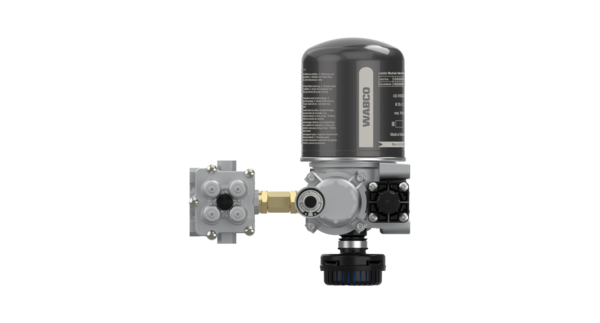

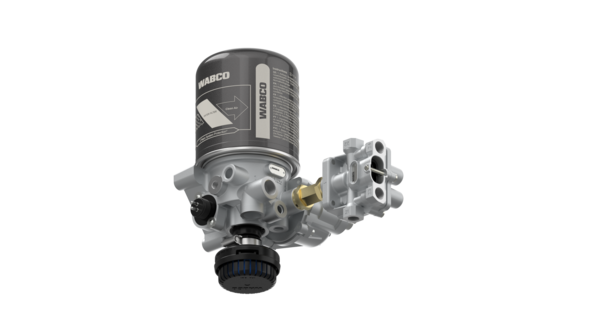

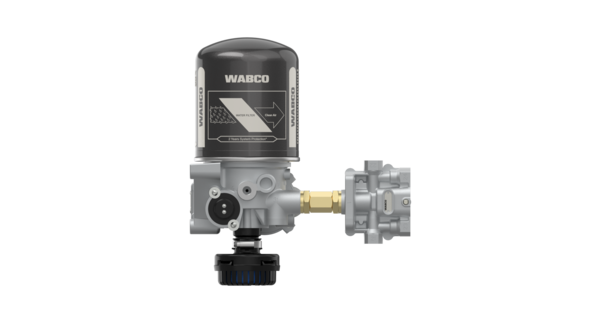

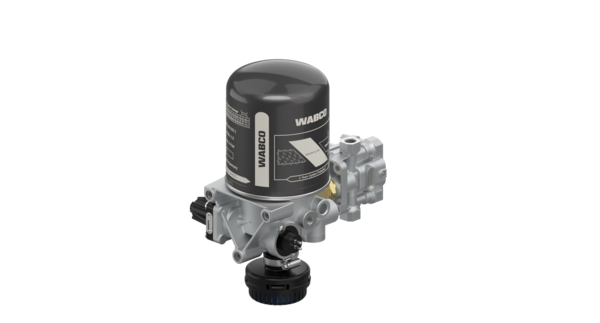

Air Processing Unit
Part Number: 9325000440
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Air dryer | 4324150500 |
| Back flow | 0.7 bar |
| Calculated Volume (dm³) | 19.882 |
| Closing pressure dynamic 21 | 6.4 bar |
| Closing pressure dynamic 22 | 6.4 bar |
| Closing pressure dynamic 23 | 6.4 bar |
| Closing pressure dynamic 24 | 6.4 bar |
| Comments | No MCPV pressure sensor |
| Cut-out pressure | 11.0 bar |
| Heating connection | Kostal M27 x 1 |
| MCPV | 9347141100 |
| Max. operating pressure | 13.0 bar |
| Opening pressure 21 | 6.9 bar |
| Opening pressure 22 | 6.9 bar |
| Opening pressure 23 | 7 bar |
| Opening pressure 24 | 6.9 bar |
| Operational range | 0.7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M16 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 23 | M16 x 1.5 |
| Port thread 24 | M16 x 1.5 |
| Port thread 4 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | Silencer 432 407 012 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Variable nominal flow rate | 16.00 – 35.00 (L/min) |
| Voltage | 24 V |
| GTIN | 04057875288732 |
| Size (mm x mm x mm) | 326 x 316 x 193 |
| UPC | 193133359951 |
| Weight (kg) | 5.438 |
| Weight (lb) | 11.989 |
