Description

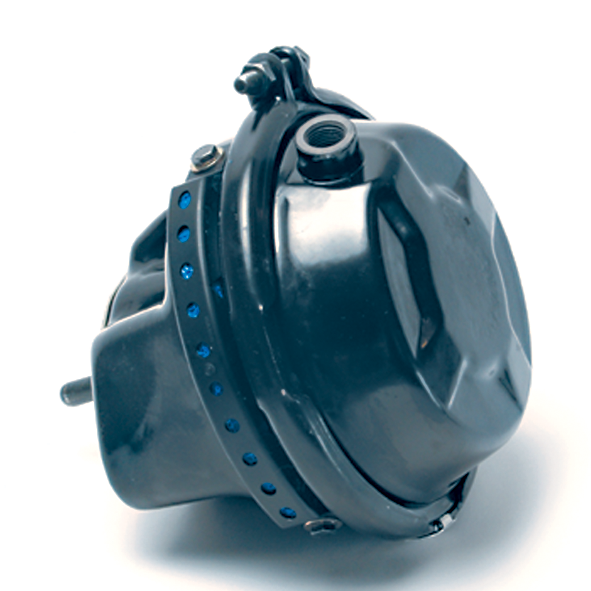

Air/Hydraulic Chamber
Part Number: 4230560000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.8172 |
| Con-rod length | 46 mm |
| Distance between holes | 82.5/125 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2 x M12 x 1.5 / 3 x M10 |
| Output force | 9200 N |
| Port thread 11 | M16 x 1.5 |
| Product category | Device |
| Push-rod thread | R 5.5 mm |
| Stroke | 75.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 24, 20 |
| Version | Without console mounting |
| GTIN | 04057875161530 |
| Size (mm x mm x mm) | 195 x 184 x 190 |
| UPC | 193133244561 |
| Weight (kg) | 3.711 |
| Weight (lb) | 8.181 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505246 |
| FAUN | 1619259 |
| FREIGHTLINER | 9628S4230560000 |
| KENWORTH | S423-056-000-0 |
| MERCEDES-BENZ | 0014311514 |
| MERITOR | S4230560000 |
| O&K | 1478180 |
| O&K | 16192591520441 |
| OTOKAR | 95A0008060AA |
| PACCAR | 1505246 |
| PETERBILT | S423-056-000-0 |
