Description

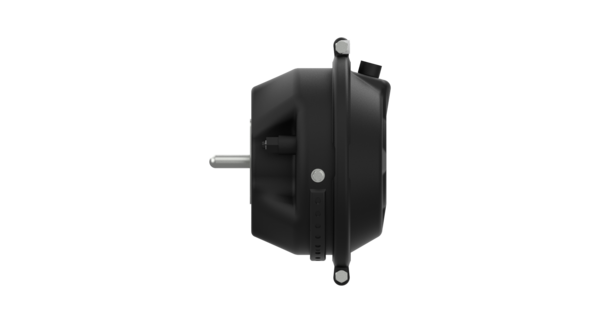

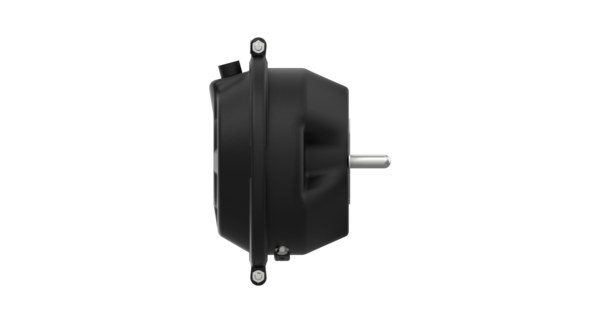

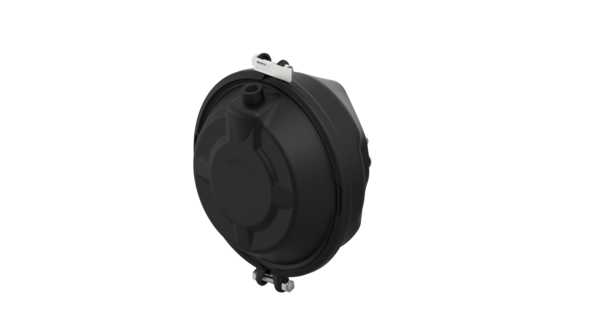

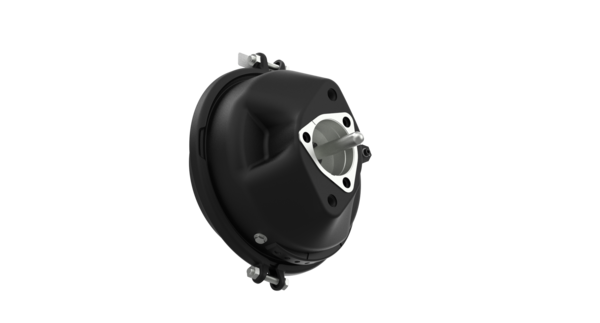

Air/Hydraulic Chamber
Part Number: 4230580010
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 10.657 |
| Con-rod length | 46 mm |
| Distance between holes | 82.5/125 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2 x M12 x 1.5 / 3 x M10 |
| Output force | 15000 N |
| Port thread 11 | M16 x 1.5 |
| Product category | Device |
| Push-rod thread | R 7.5 mm |
| Stroke | 75.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 36 |
| Version | Without console mounting |
| GTIN | 04057875161738 |
| Size (mm x mm x mm) | 231 x 198 x 233 |
| UPC | 193133001720 |
| Weight (kg) | 5.392 |
| Weight (lb) | 11.887 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 0634169 |
| DAF | 634169 |
| KÖGEL | 319184 |
| MAN | 84511016011 |
| NEOPLAN | 070247006 |
| NEOPLAN | 70247006 |
| PACCAR | 0634169 |
| VDL | 40634169 |
| VDL | 0634169 |
