Description

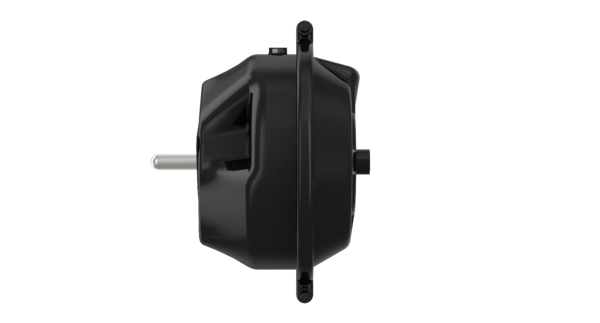

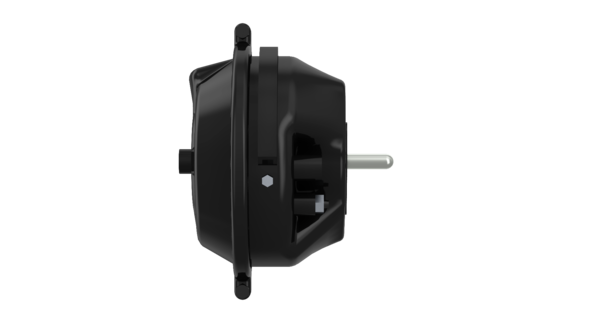

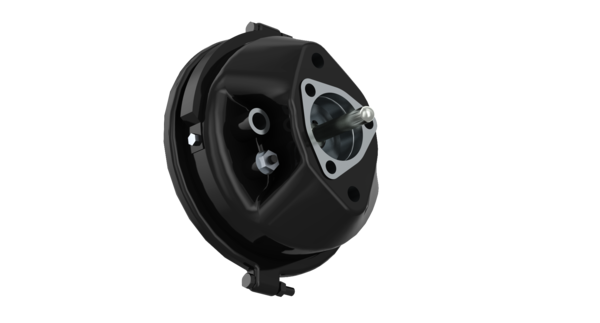

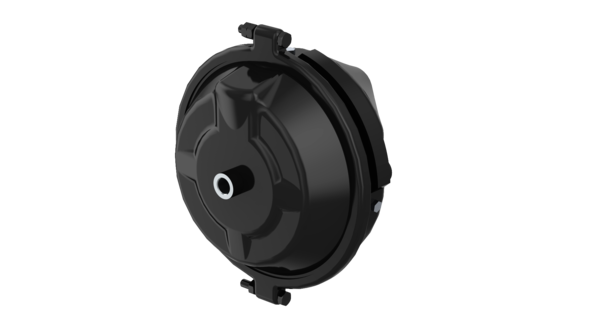

Air/Hydraulic Chamber
Part Number: 4230580020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 16.038 |
| Con-rod length | 46 mm |
| Distance between holes | 82.5/125 mm |
| Max. operating pressure | 10.0 bar |
| Mounting | 2 x M12 x 1.5 / 3 x M10 |
| Output force | 15000 N |
| Port thread 11 | M16 x 1.5 |
| Product category | Device |
| Push-rod thread | R 7.5 mm |
| Stroke | 75.0 mm |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Type | 36 |
| Version | Without console mounting |
| GTIN | 04057875161721 |
| Size (mm x mm x mm) | 270 x 270 x 220 |
| UPC | 193133436300 |
| Weight (kg) | 5.521 |
| Weight (lb) | 12.172 |
OEM Cross References
| Brand | Reference No |
|---|---|
| TEREX | 24742340 |
| VOLVO | 11191245 |
