Description

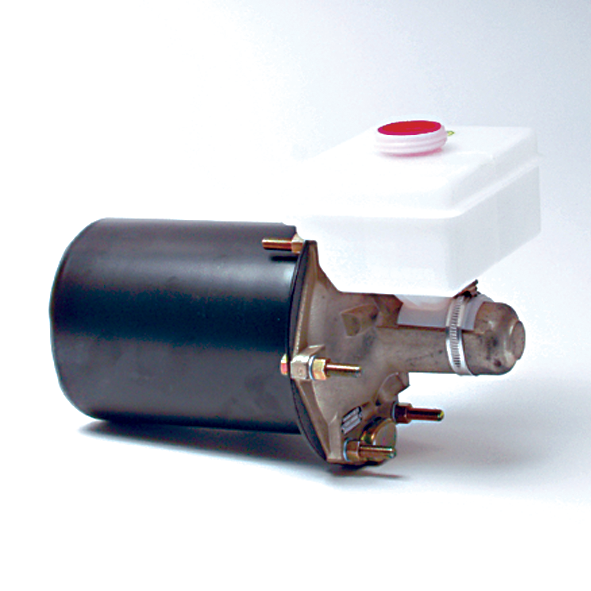

Air/Hydraulic Actuator
Part Number: 9213990160
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 17.311 |
| Hydraulic pressure | 120 bar |
| Medium | Brake fluid |
| Pneumatic pressure | 8.0 bar |
| Port thread 11-4 | M22 x 1.5 |
| Port thread 12 | Ø 44.8 x 3.62 |
| Port thread 2 | M12 × 1.0 |
| Product category | Device |
| Reservoir | 770 ccm |
| Swept volume (cm³) | 60 cm3 |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| GTIN | 04057875276050 |
| Size (mm x mm x mm) | 387 x 210 x 213 |
| UPC | 193133447641 |
| Weight (kg) | 4.2 |
| Weight (lb) | 9.2594 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505107 |
| FREIGHTLINER | TDAS9213990160 |
| IRISBUS | 0300378600 |
| IVECO | 9921399016 |
| KALMAR IRION | 9231200692 |
| KENWORTH | S9213990160 |
| MACK | 8235-S9213990160 |
| MACK | 6300-9213990160 |
| MERITOR | S9213990160 |
| PACCAR | 1505107 |
| PETERBILT | S9213990160 |
| RENAULT | 5000451476 |
| RENAULT | 5021170315 |
| VOLVO | WAB9213990160 |
