Description

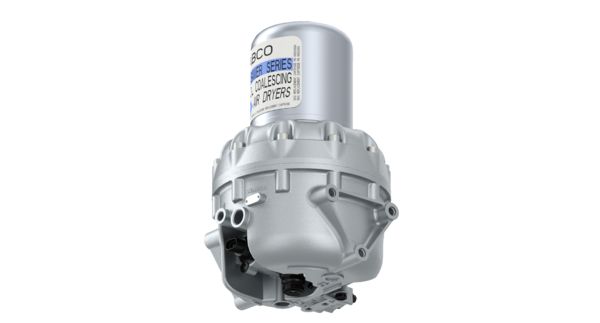

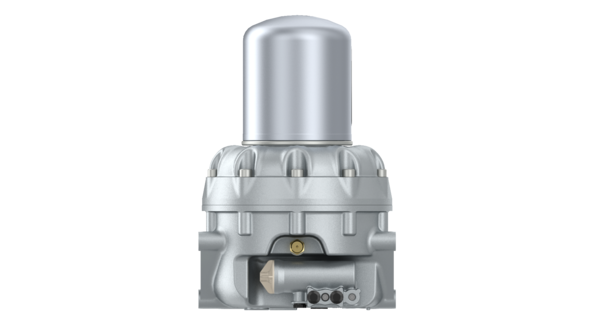

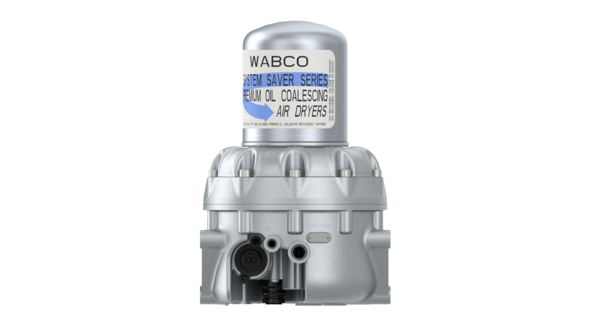

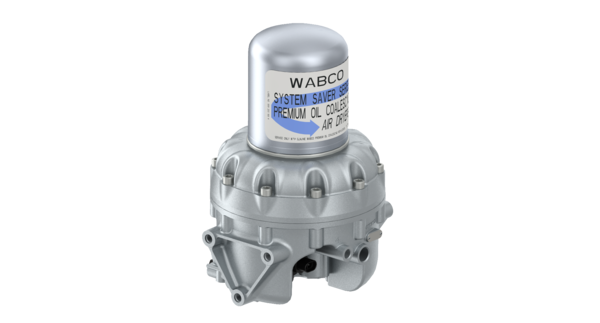

Air Dryer
Part Number: 4324701210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 52.2902 |
| Cartridge type | Desiccant and Oil separator Cartridge |
| Comments | Turbo-cut-off valve installed |
| Cut-out pressure | 8.7 to 9.4 bar |
| Max. operating pressure | 10.0 bar |
| Opening pressure | 12.80 bar |
| Port thread 21 | 1/2″ – 14 NPTF |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +80°C |
| Voltage | 24 V |
| GTIN | 04057875173724 |
| Size (mm x mm x mm) | 453 x 327 x 353 |
| UPC | 193133437840 |
| Weight (kg) | 9.2 |
| Weight (lb) | 20.283 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S4324701210 |
| MERITOR | S4324701210 |
| PETERBILT | S4324701210 |
