Description

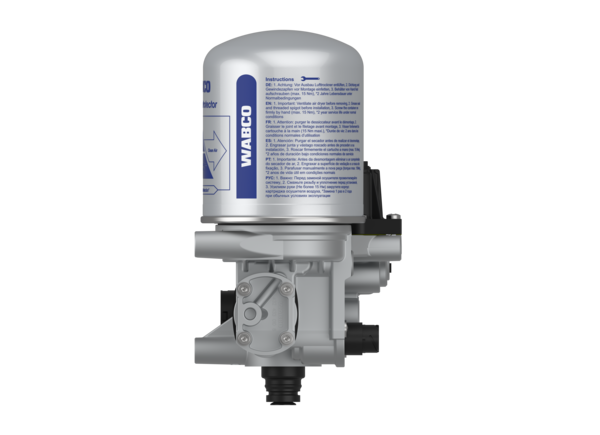

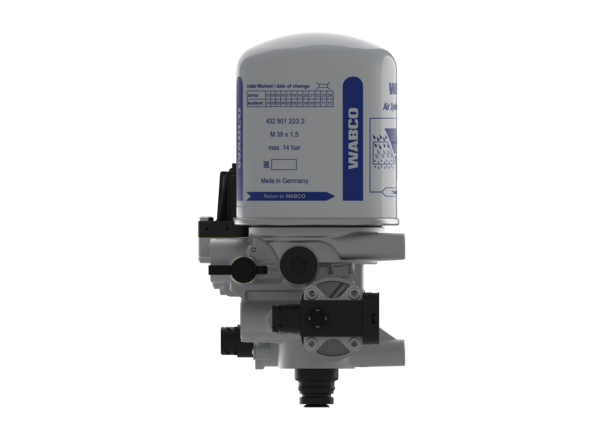

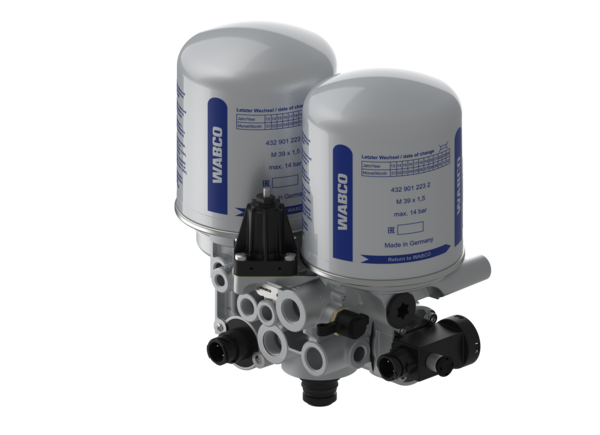

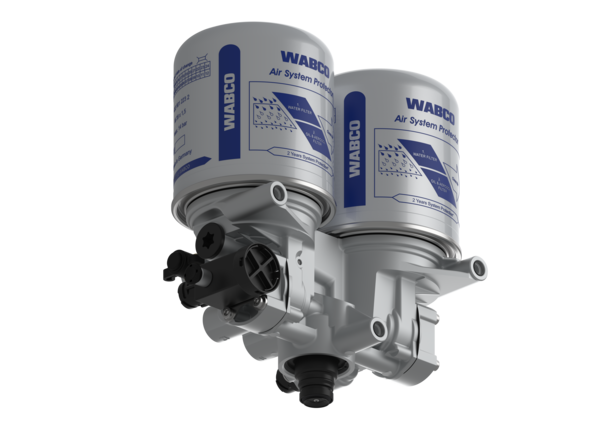

Air Dryer (Twin Cannister)
Part Number: 4324332970
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 26.9216 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 8.5 bar |
| Electrical connection | DIN 72585 A1-2.1-Sn/K1 |
| Exhaust | JED-463-0 |
| Heating connection | DIN 72585-A1-2.1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Operational range | 0.6 bar |
| Port thread 11 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 12 V |
| GTIN | 04057875173564 |
| Size (mm x mm x mm) | 377 x 370 x 193 |
| UPC | 193133482307 |
| Weight (kg) | 8.756 |
| Weight (lb) | 19.304 |
