Description

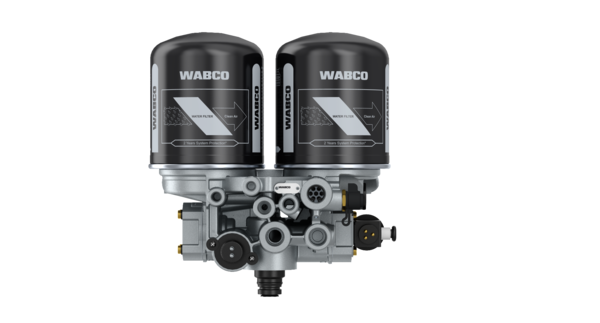

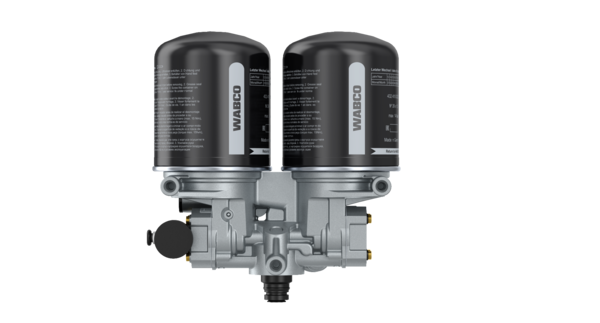

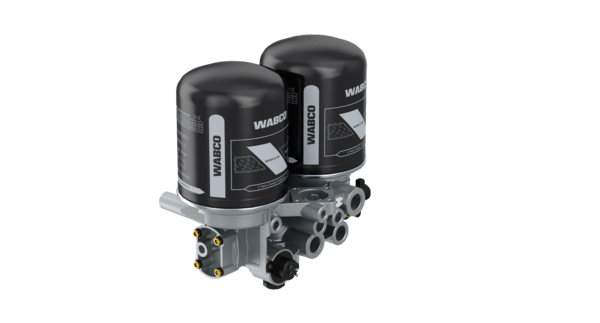

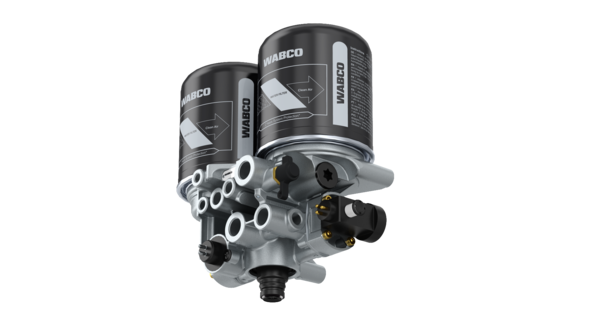

Air Dryer (Twin Cannister)
Part Number: 4324332730
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 26.636 |
| Cartridge type | Desiccant Cartrige |
| Exhaust | Snap-on contour |
| Heating connection | Kostal M27 x 1 |
| Heating system | Yes |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Port thread 11 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | Tire inflation device M16x1.5 |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | M16 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Solenoid connection | Kostal M24 x 1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | No |
| Voltage | 24 V |
| GTIN | 04057875173526 |
| Size (mm x mm x mm) | 373 x 370 x 193 |
| UPC | 193133260295 |
| Weight (kg) | 8.68 |
| Weight (lb) | 19.136 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505980 |
| DAF | 1528334 |
| EVOBUS | 8285358000 |
| EVOBUS | A0014300815 |
| IVECO | 42554597 |
| IVECO | 42565801 |
| IVECO | 97103148 |
| IVECO | 9840104 |
