Description

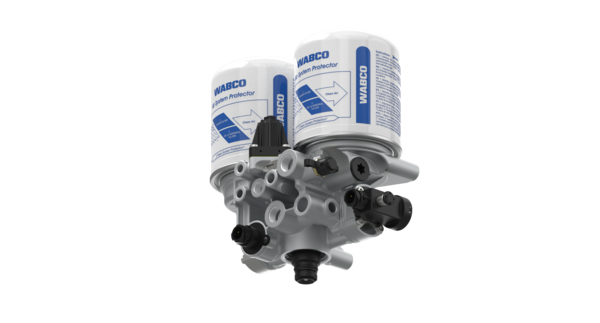

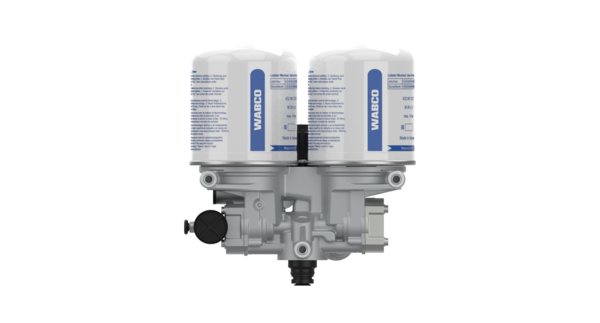

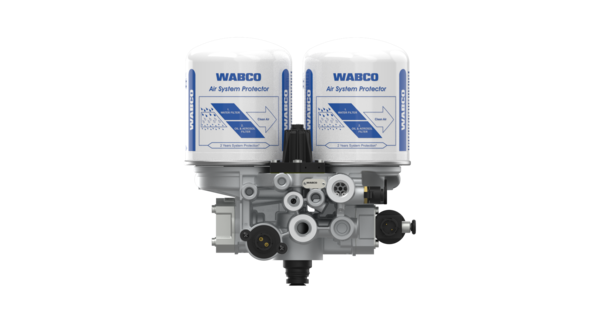

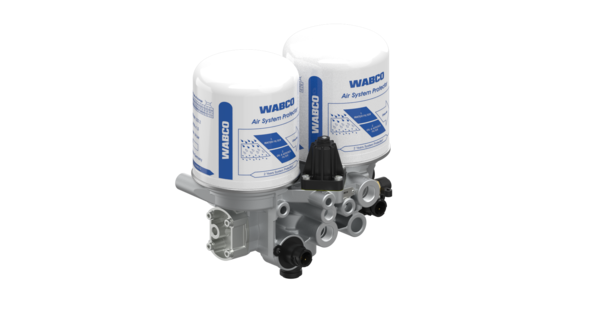

Air Dryer (Twin Cannister)
Part Number: 4324332960
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 26.01 |
| Cartridge type | Air System Protector M39 |
| Cut-out pressure | 12.5 bar |
| Electrical connection | DIN 72585 A1-2.1-Sn/K1 |
| Exhaust | JED-463-0 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Heating system | Yes |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13 bar |
| Operational range | 1.3 bar |
| Port thread 11 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | Tire inflation device M16 x 1.5 |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Solenoid connection | Bayonet DIN 72585-A1-2.1-1-Sn/K1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875173502 |
| Size (mm x mm x mm) | 370 x 370 x 190 |
| UPC | 193133260370 |
| Weight (kg) | 7.845 |
| Weight (lb) | 17.3 |
OEM Cross References
| Brand | Reference No |
|---|---|
| AGCO | G530880140020 |
