Description

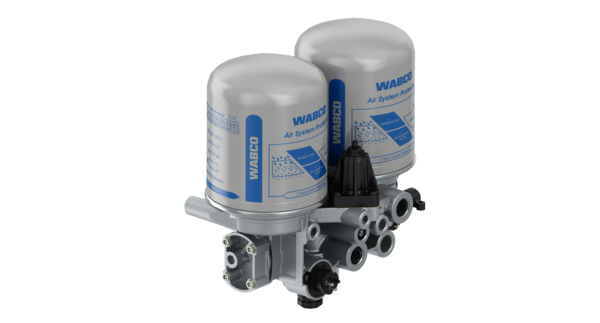

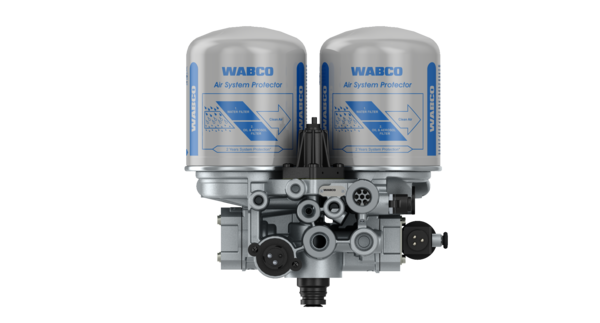

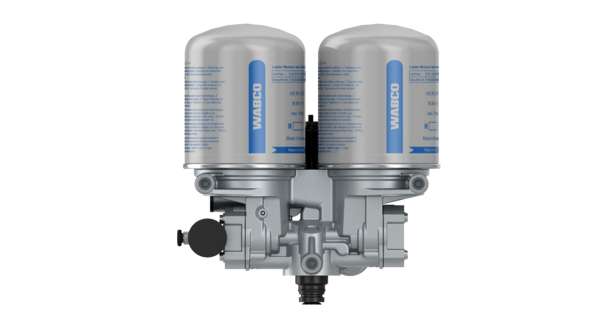

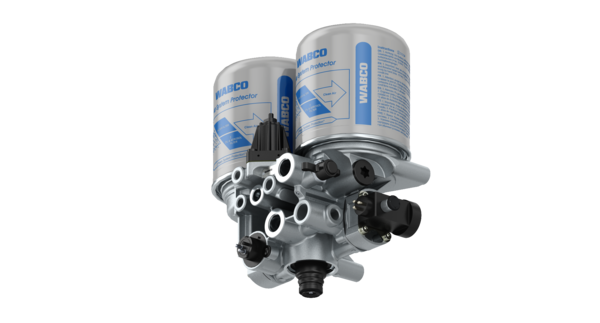

Air Dryer (Twin Cannister)
Part Number: 4324332980
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 26.0093 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.5 bar |
| Exhaust | JED-463-0 |
| Heating connection | Bayonet (Schlemmer) 3-pin |
| Heating system | Yes |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13 bar |
| Operational range | 0.6 bar |
| Port thread 11 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | Tire inflation device M16 x 1.5 |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Solenoid connection | Kostal M24 x 1 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875173588 |
| Size (mm x mm x mm) | 373 x 190 x 367 |
| UPC | 193133437758 |
| Weight (kg) | 8.723 |
| Weight (lb) | 19.231 |
