Description

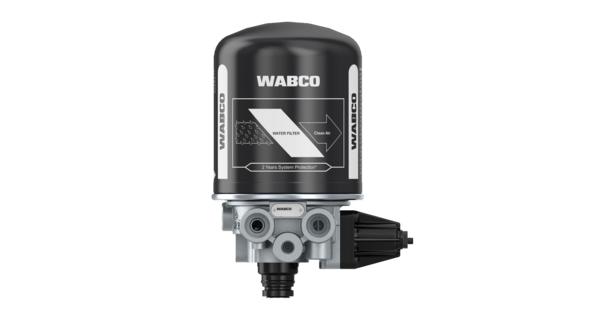

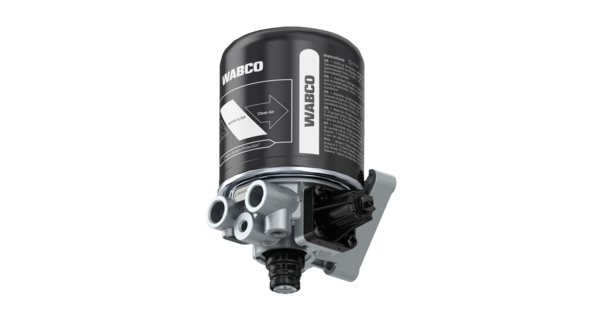

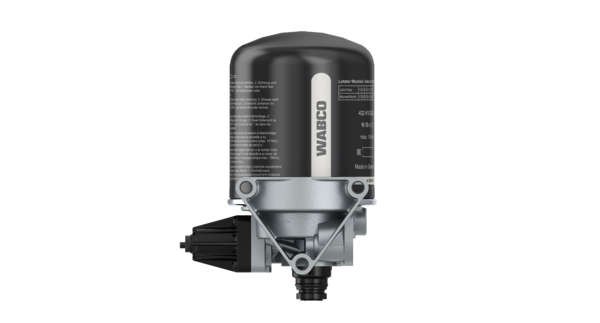

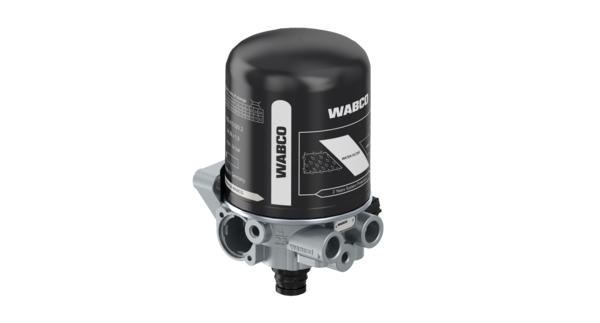

Air Dryer (Single Cannister)
Part Number: 4324100210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.161 |
| Cartridge type | Desiccant Cartrige |
| Comments | Alternative: cut-out pressure needs adjusting |
| Cut-out pressure | 9.5 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875170808 |
| Size (mm x mm x mm) | 253 x 136 x 150 |
| UPC | 193133479833 |
| Weight (kg) | 3.32 |
| Weight (lb) | 7.319 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517964 |
| IRISBUS | 42079486 |
| IVECO | 42079484 |
| IVECO | 42079485 |
| IVECO | 42079486 |
| IVECO | 42125015 |
| IVECO | 42079586 |
| IVECO | 9010099029 |
| IVECO | 4324100210 |
| IVECO | 110450 |
| OTOKAR | 12F0008085AA |
