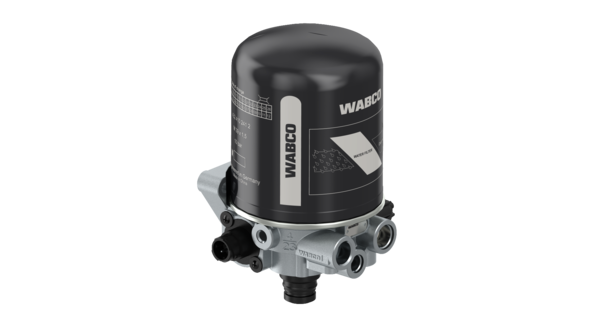

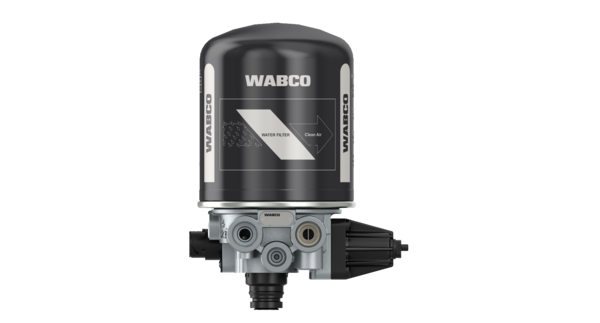

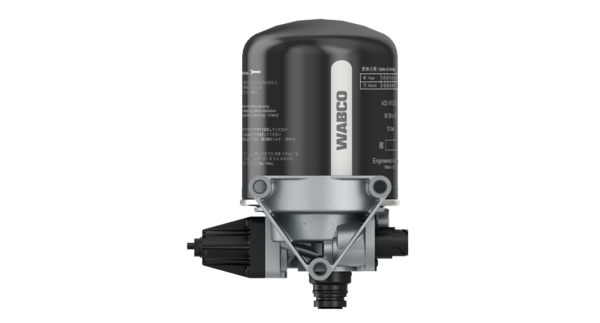

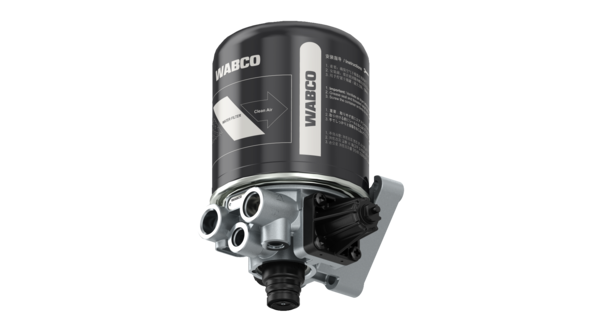

Air Dryer (Single Cannister)
Part Number: 4324101750
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Cartridge type | Desiccant Cartridge |
| Cooling | Compressed air |
| Cut-out pressure | 8.5±0.2 bar |
| Exhaust | JED-463-0 |
| Heater | 894 260 049 2 |
| Heating connection | DIN 72585-A1-2.1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 30 |
| Operational range | 0.7 bar |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057875171560 |
| UPC | 193133255314 |
| Weight (kg) | 0.001 |
| Weight (lb) | 0.0022046 |
OEM Cross References
| Brand | Reference No |
|---|---|
| BEIBEN | 4324101750 |
