Description

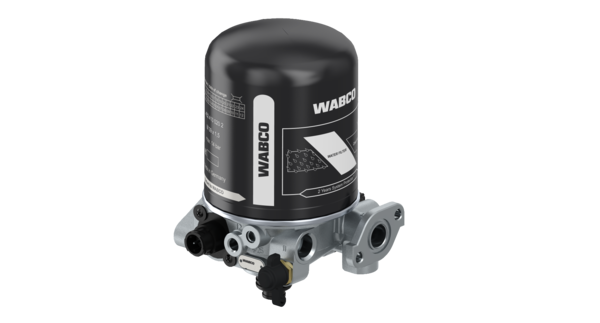

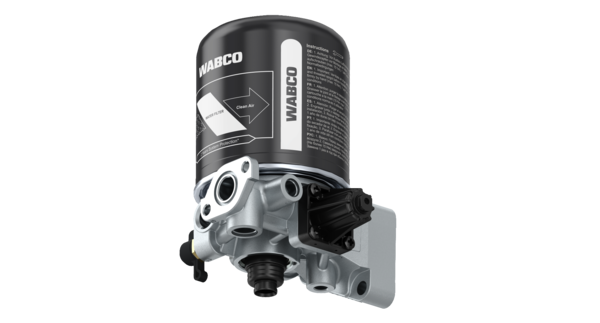

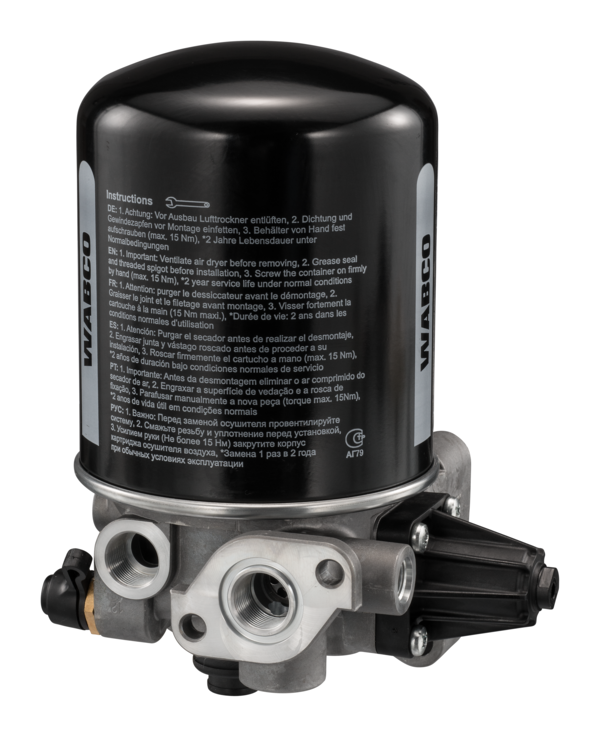

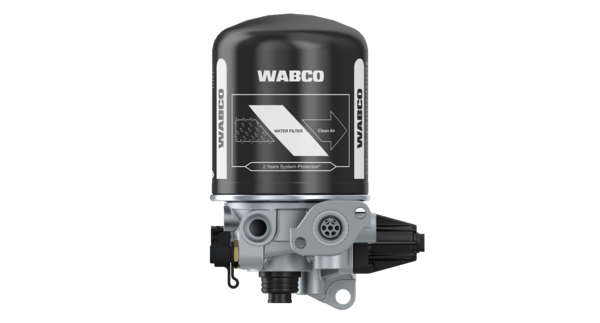

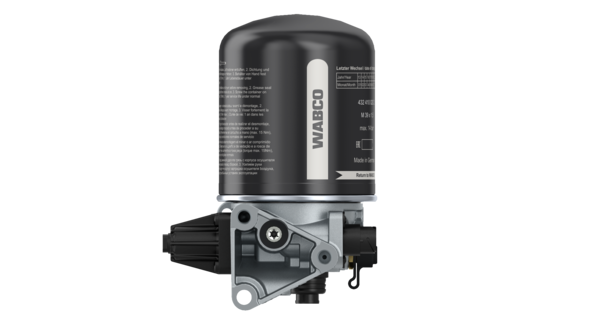

Air Dryer (Single Cannister)
Part Number: 9324000140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.3916 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 11.5 bar |
| Exhaust | JED-463-1 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 14.50 bar |
| Operating pressure | 13.0 bar |
| Operational range | 1.5 bar |
| Port thread 11 | M22 x 1.5 |
| Port thread 12 | M12 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 23 | Tire inflation device M16 x 1.5 |
| Port thread 24 | M22 x 1.5 JED – 388 |
| Port thread 3 | JED-463-1 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 015 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875288527 |
| Size (mm x mm x mm) | 252 x 185 x 180 |
| UPC | 193133359838 |
| Weight (kg) | 5 |
| Weight (lb) | 11.023 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0004306315 |
| MERCEDES-BENZ | 0004306315 |
| MERCEDES-BENZ | A0004306315 |
| SOLARIS | 1102751105 |
