Description

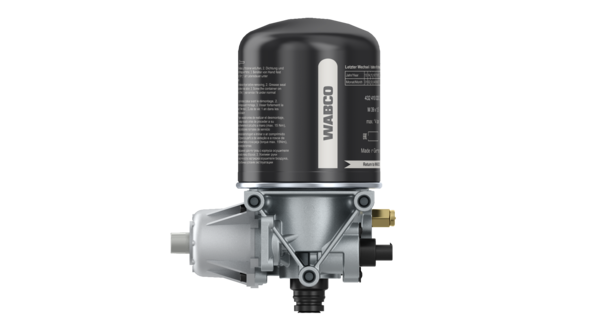

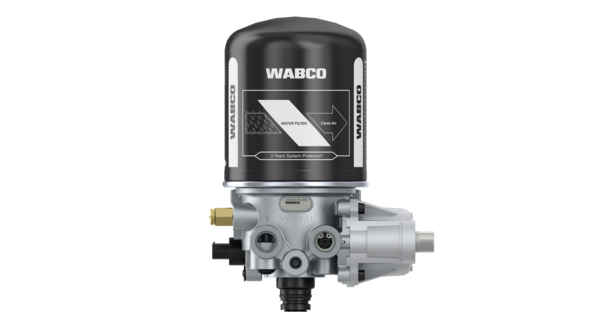

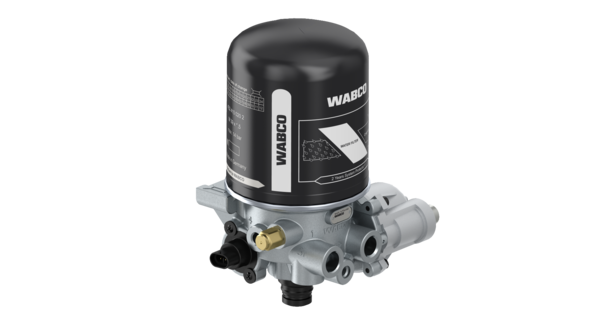

Air Dryer (Single Cannister)
Part Number: 4324120040
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Back flow | 0.7 bar |
| Calculated Volume (dm³) | 9.0419 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 7.9 to 9.0 bar |
| Exhaust | JED-463-0 |
| Heating connection | 280 METRI-PACK NR.1202 0599 |
| Max. operating pressure | 10.0 bar |
| Opening pressure | 12.80 bar |
| Port thread 21 | 1/2″ – 14 NPTF |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 12 V |
| GTIN | 04057875171836 |
| Size (mm x mm x mm) | 213 x 283 x 150 |
| UPC | 193133256021 |
| Weight (kg) | 4.74 |
| Weight (lb) | 10.45 |
