Description

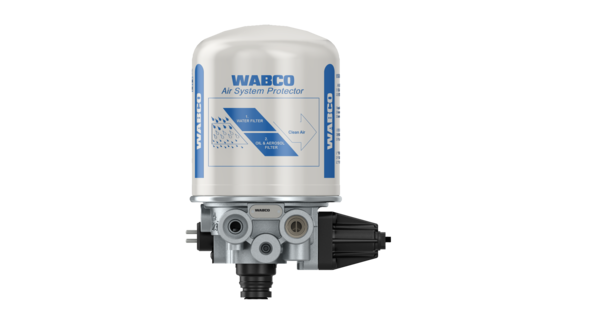

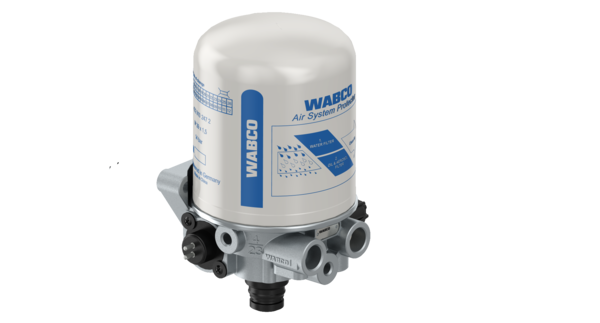

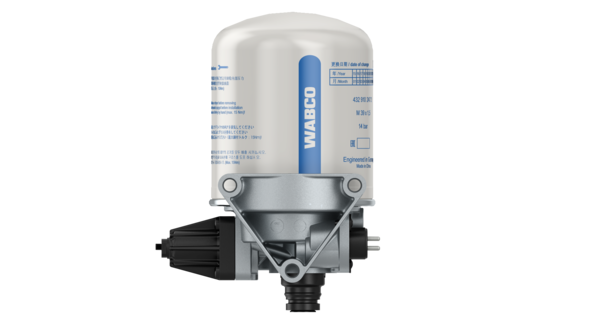

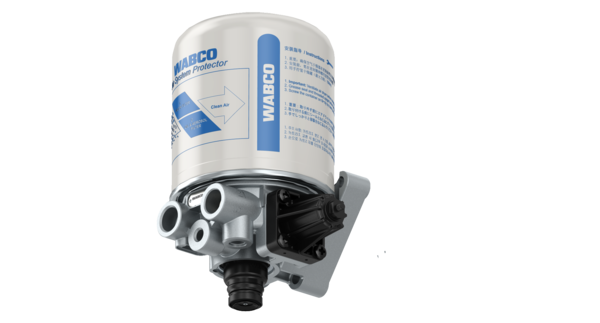

Air Dryer (Single Cannister)
Part Number: 4324101300
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.4118 |
| Cartridge type | Desiccant Cartrige |
| Cooling | Compressed air |
| Cut-out pressure | 8.5 bar |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Mounting | 30 |
| Operational range | 0.7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171379 |
| Size (mm x mm x mm) | 258 x 189 x 152 |
| UPC | 193133255109 |
| Weight (kg) | 3.569 |
| Weight (lb) | 7.8683 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FOTON | 1612335600070 |
| KING LONG | 235200009 |
| LIEBHERR | 502657308 |
| SUNWIN | SWB563050160 |
| YUTONG | 352900053 |
| YUTONG | 3529-00053 |
