Description

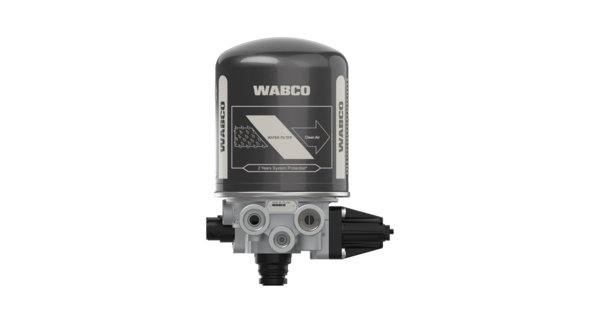

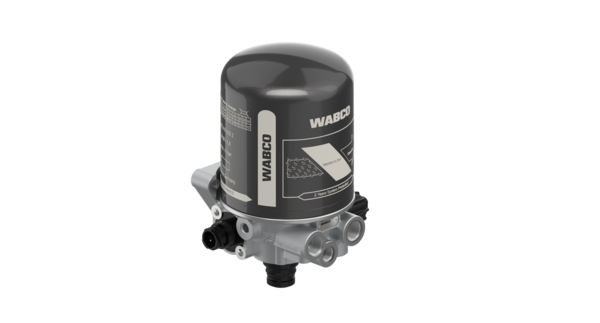

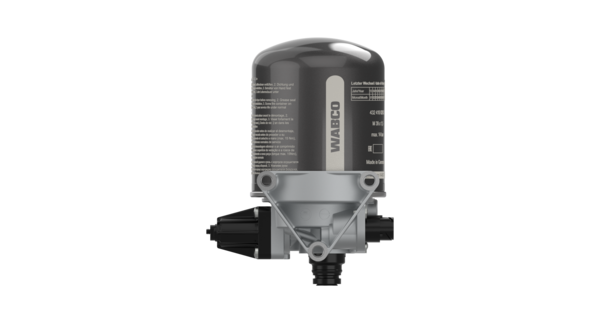

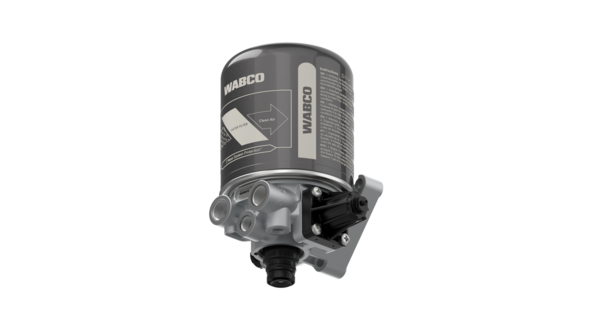

Air Dryer (Single Cannister)
Part Number: 4324101140
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.6471 |
| Cartridge type | Desiccant Cartrige |
| Comments | Ports 21 and 22 for Voss push-in fittings |
| Cut-out pressure | 8.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 4/23 | M16 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171270 |
| Size (mm x mm x mm) | 258 x 195 x 152 |
| UPC | 193133258650 |
| Weight (kg) | 3.642 |
| Weight (lb) | 8.0292 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | 445332022 |
| MAN | 81521026118 |
| MAN | 81521026120 |
| MAN | 81521026122 |
| MAN | 81521029120 |
| NEOPLAN | 81521026120 |
| SCANIA | 390854 |
