Description

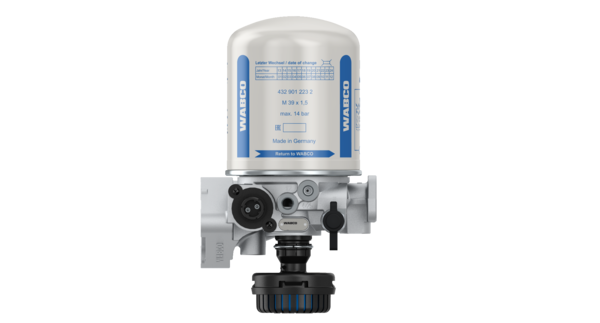

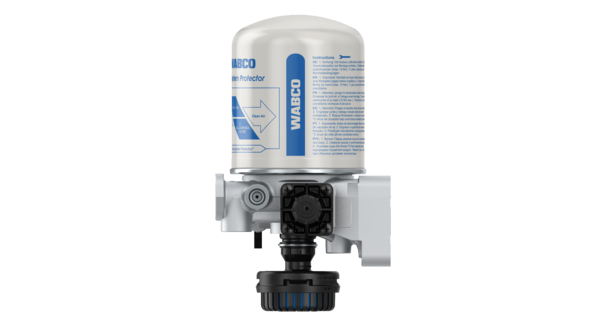

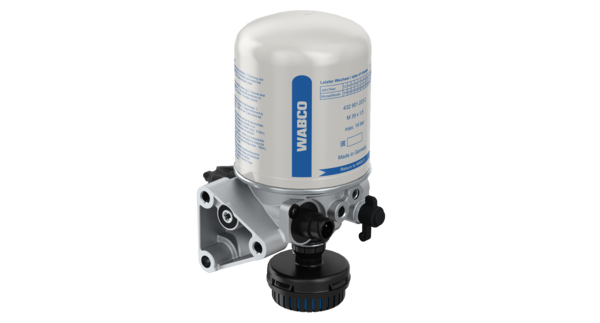

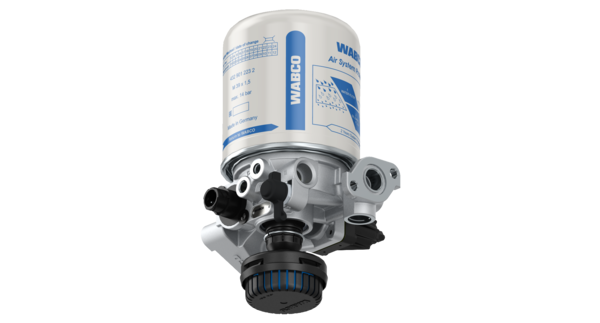

Air Dryer (Single Cannister)
Part Number: 9324000210
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 11.704 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 12.5 bar |
| Exhaust | Silencer 4324070150 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 14.50 bar |
| Operating pressure | 13.0 bar |
| Operational range | 1.5 bar |
| Port thread 11 | M22 x 1.5 JED – 152 |
| Port thread 12 | M12 x 1.5 JED – 152 |
| Port thread 21 | M22 x 1.5 JED – 152 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 23 | Tire inflation device M16 x 1.5 |
| Port thread 24 | M22 x 1.5 JED – 388 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | 432 407 015 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875288572 |
| Size (mm x mm x mm) | 308 x 200 x 190 |
| UPC | 193133359609 |
| Weight (kg) | 4.071 |
| Weight (lb) | 8.975 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1527583 |
| PACCAR | 1527583 |
| VDL | 30016600 |
