Description

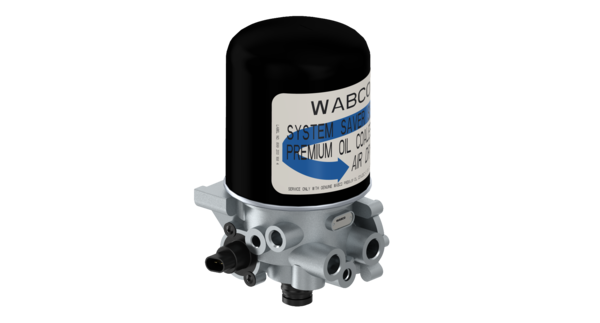

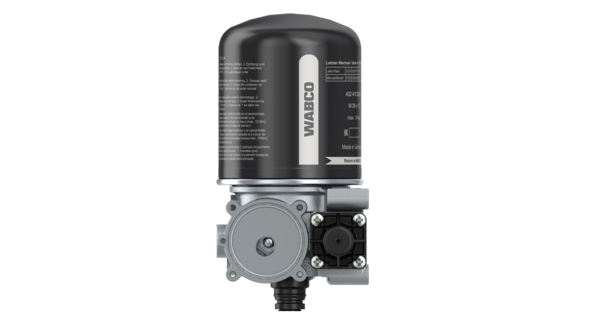

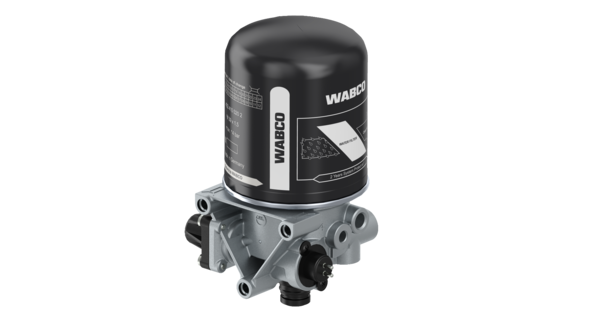

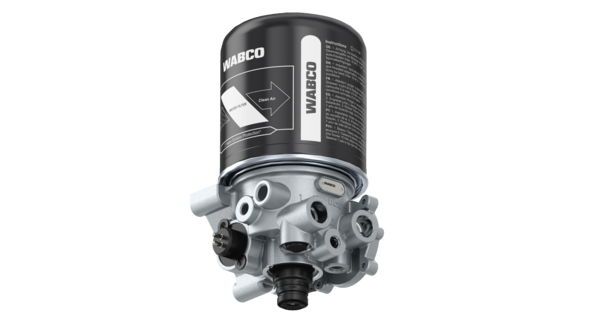

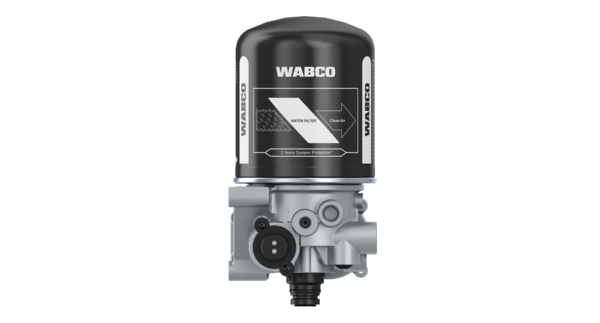

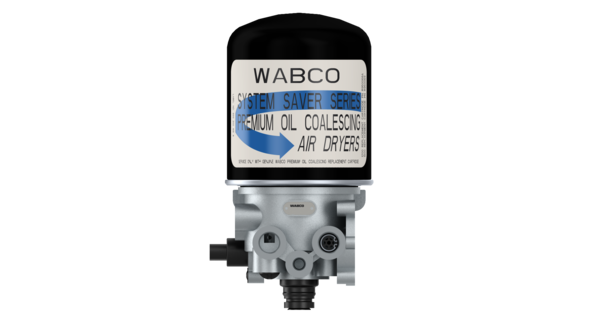

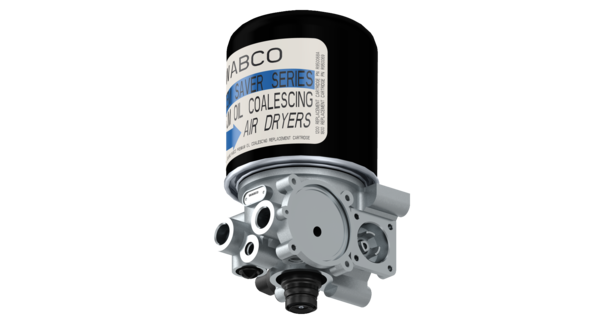

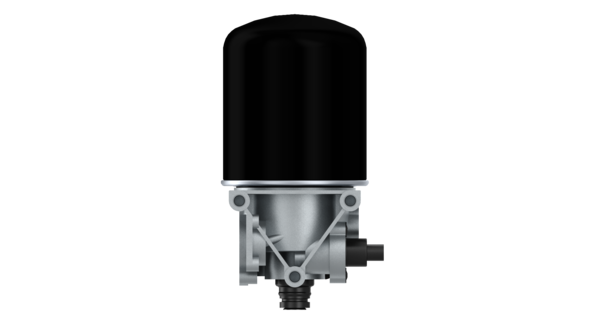

Air Dryer (Single Cannister)
Part Number: 4324210120
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.488 |
| Cartridge type | Desiccant Cartrige |
| Comments | Turbo-cut-off valve installed |
| Cut-out pressure | 10.0 bar |
| Exhaust | No (432 407 012 0 retrofittable) |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 10.0 bar |
| Opening pressure | 12.00 bar |
| Operational range | 0.7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | No |
| Voltage | 24 V |
| GTIN | 04057875172666 |
| Size (mm x mm x mm) | 280 x 140 x 140 |
| UPC | 193133437376 |
| Weight (kg) | 3.99 |
| Weight (lb) | 8.7964 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ALEXANDER DENNIS | 658558 |
| MACK | 6300-4324210120 |
| VOLVO | WAB4324210120 |
