Description

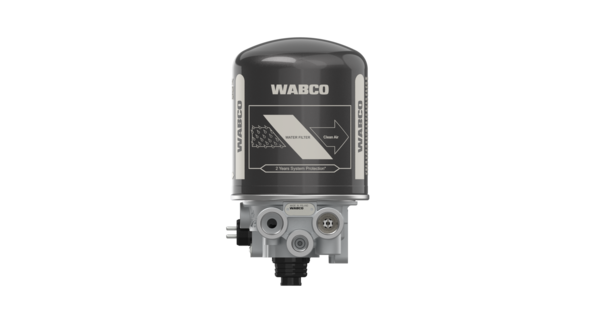

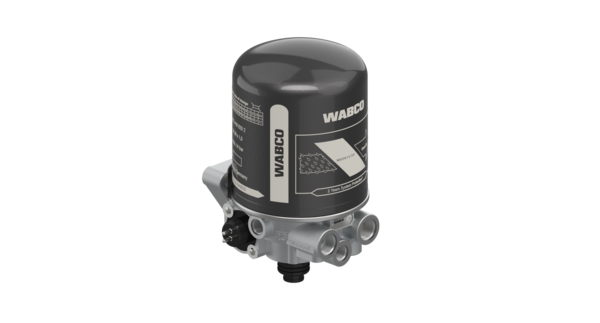

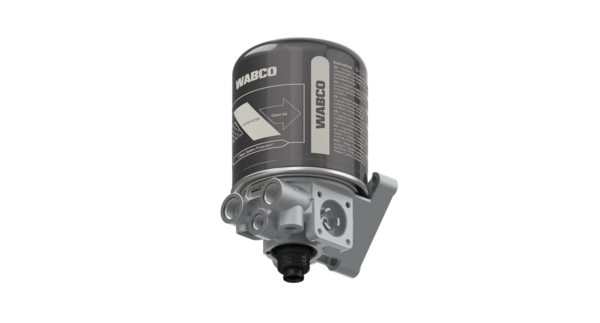

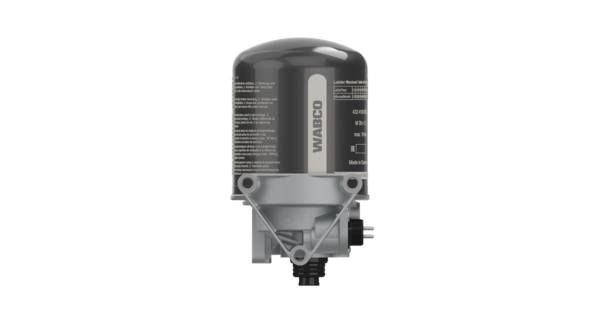

Air Dryer (Single Cannister)
Part Number: 4324210070
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.5825 |
| Cartridge type | Desiccant Cartrige |
| Comments | Ports 22 and 4 for Voss push-in fitting |
| Cut-out pressure | 13.0 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 015 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875172628 |
| Size (mm x mm x mm) | 145 x 154 x 250 |
| UPC | 193133257684 |
| Weight (kg) | 3.428 |
| Weight (lb) | 7.5574 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517977 |
| EVOBUS | A0014312115 |
| MERCEDES-BENZ | 0014310815 |
| MERCEDES-BENZ | 0014312115 |
| MERCEDES-BENZ | A0014312115 |
