Description

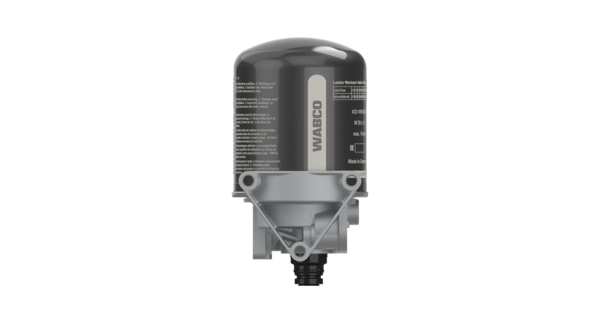

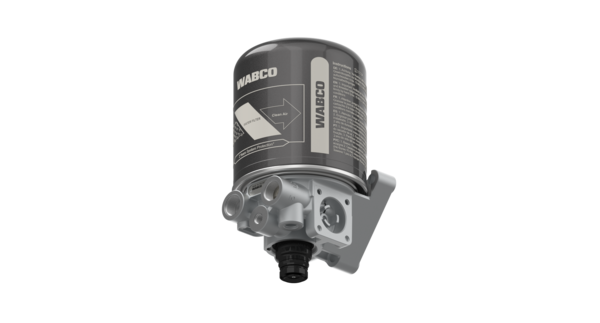

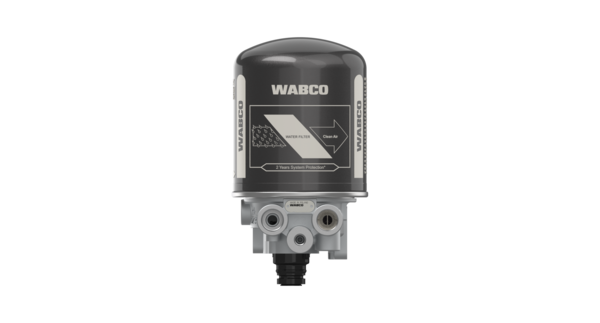

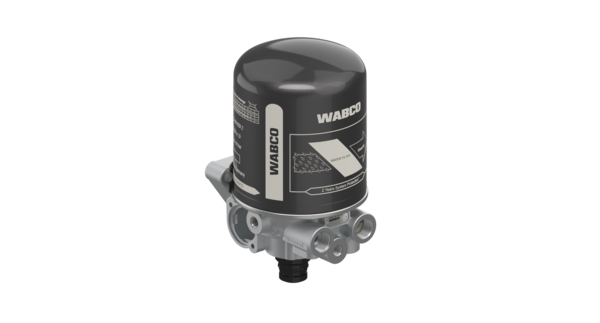

Air Dryer (Single Cannister)
Part Number: 4324200020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.5295 |
| Cartridge type | Desiccant Cartrige |
| Cooling | Compressed air |
| Cut-out pressure | 13.0 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Mounting | 30 |
| Opening pressure | 13.00 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875172475 |
| Size (mm x mm x mm) | 141 x 258 x 152 |
| UPC | 193133437291 |
| Weight (kg) | 3.389 |
| Weight (lb) | 7.4715 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517973 |
| EVOBUS | A0004313615 |
| FREIGHTLINER | TDAS4324200020 |
| KENWORTH | S4324200020 |
| MERCEDES-BENZ | 0004313615 |
| MERCEDES-BENZ | 0004313635 |
| MERCEDES-BENZ | 0004313715 |
| MERCEDES-BENZ | 0004316515 |
| MERCEDES-BENZ | A0004313615 |
| MERITOR | S4324200020 |
| NEOPLAN | 11018619 |
| O&K | 8460398 |
| PETERBILT | S4324200020 |
| SCANIA | 390854 |
| VOLVO | 1629927 |
| VOLVO | 1628915 |
