Description

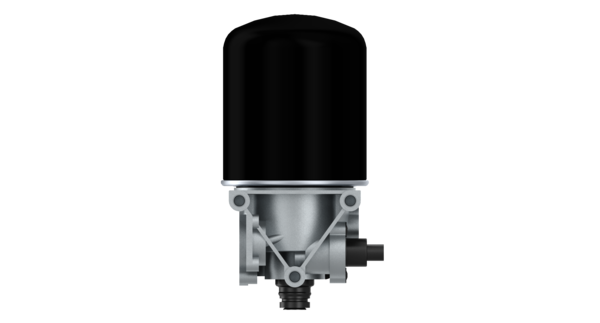

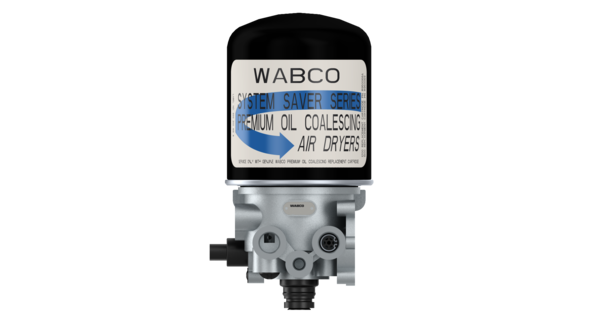

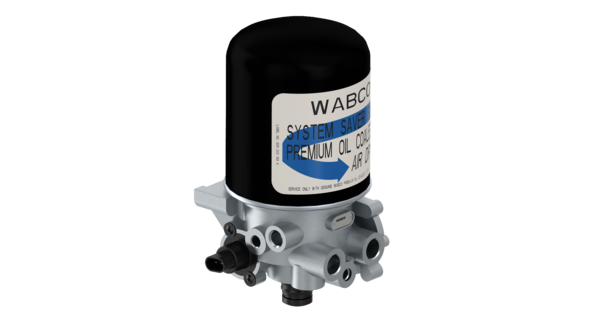

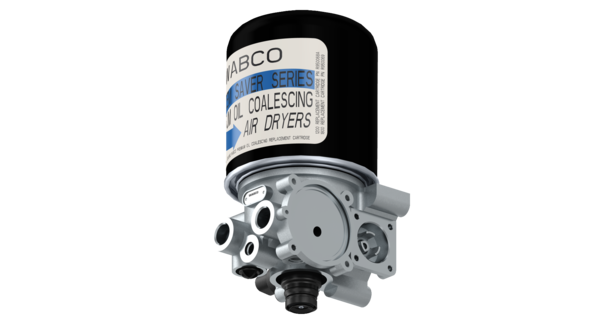

Air Dryer (Single Cannister)
Part Number: 4324210090
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.2216 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 7.9 to 9 bar |
| Exhaust | No (4324070120 retrofittable) |
| Heater | 894 260 046 2 |
| Heating connection | DELPHI METRI PACK 280 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Port thread 1 | 1/2″ – 14 NPTF |
| Port thread 21 | 1/2″ – 14 NPTF |
| Port thread 22 | 1/4″ – 18 NPTF |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | No |
| Voltage | 12 V |
| GTIN | 7895851076570 |
| Size (mm x mm x mm) | 286 x 146 x 149 |
| UPC | 193133257615 |
| Weight (kg) | 3.845 |
| Weight (lb) | 8.4768 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MACK | 6300-432421009R |
| MACK | 8235-S4324130240X |
| VOLVO | 4324210090 |
| VOLVO | WAB432421009R |
