Description

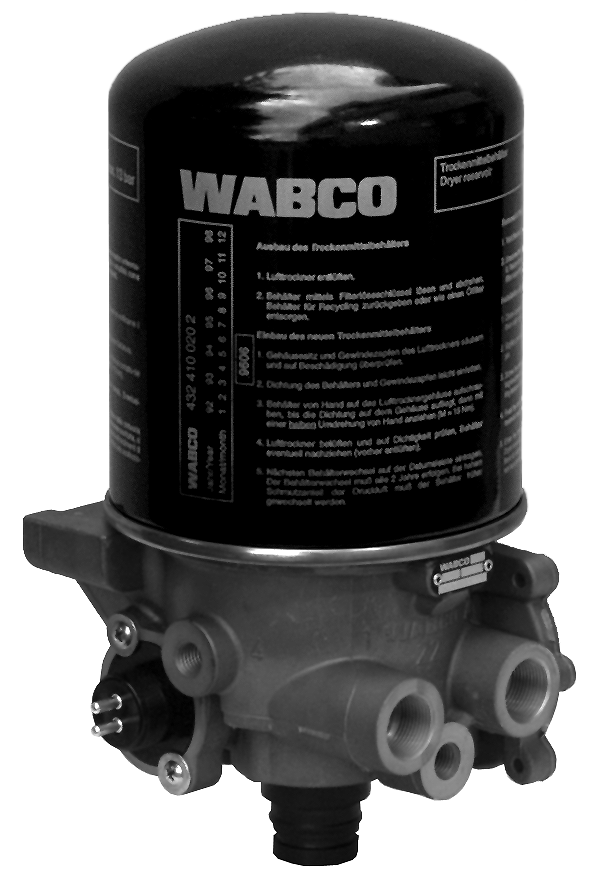

Air Dryer (Single Cannister)
Part Number: 4324200000
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.6202 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 13.0 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875172420 |
| Size (mm x mm x mm) | 145 x 255 x 152 |
| UPC | 193133437284 |
| Weight (kg) | 3.426 |
| Weight (lb) | 7.553 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505972 |
| EVOBUS | A0004316715 |
| EVOBUS | 8285142000 |
| FAUN | 99707004741 |
| IRISBUS | 42530780 |
| IRISBUS | U402151461 |
| IVECO | 42530780 |
| JAC | W23502.02900.01W |
| KALMAR IRION | 9234340006 |
| LEYLAND DAF | FBU5833 |
| LIEBHERR | 10114956 |
| MAFI | 5650003 |
| MAFI | 0005650003 |
| MAN | 88521026007 |
| MAN | 88521026006 |
| MAN | 88521026042 |
| MAN | 88521026047 |
| MAN | 88521026054 |
| MAN | 88521026060 |
| MAN | 88521026076 |
| MAN | 88521026085 |
| MERCEDES-BENZ | 0004313615 |
| MERCEDES-BENZ | 0004313815 |
| MERCEDES-BENZ | 0004316715 |
| MERCEDES-BENZ | 0004316815 |
| MERCEDES-BENZ | A0004316715 |
| NEOPLAN | 110273401 |
| NEOPLAN | 11017448 |
| NEOPLAN | 88521026007 |
| RENAULT | 4324200000 |
| SHAANXI | AZ9160366068 |
| STEYR | 526031205020 |
| STEYR | 79200360256 |
| YUTONG | 3529-00055 |
