Description

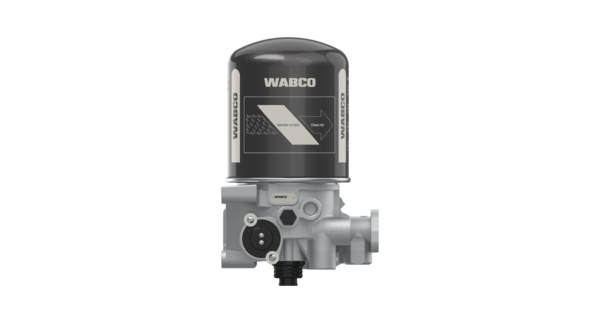

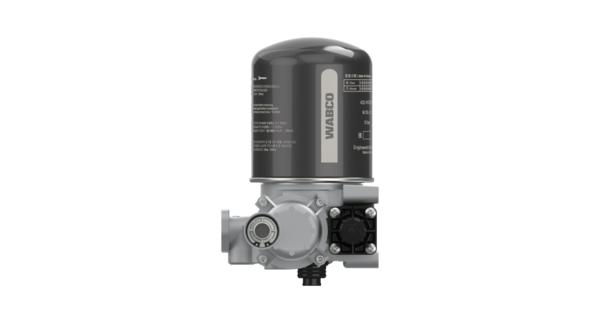

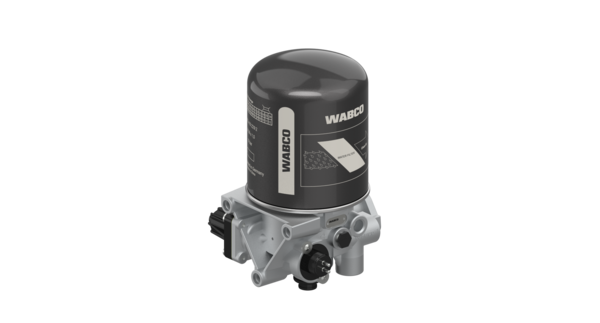

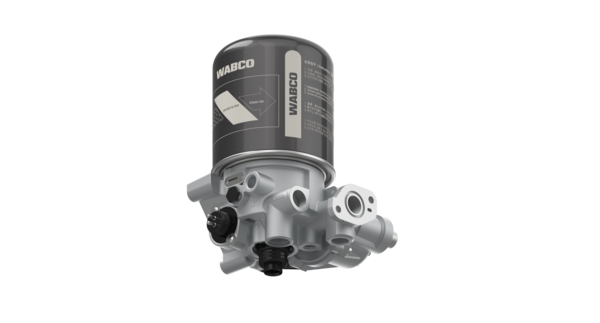

Air Dryer (Single Cannister)
Part Number: 4324150530
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Back flow | 0.5 bar |
| Calculated Volume (dm³) | 10.2502 |
| Cartridge type | Desiccant Cartridge |
| Cooling | Compressed air |
| Cut-out pressure | 8.5±0.2 bar |
| Max. operating pressure | 13.0 bar |
| Mounting | 30 |
| Opening pressure | 13.00 bar |
| Operational range | 0.7 bar |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 24 V |
| GTIN | 04057875172239 |
| Size (mm x mm x mm) | 208 x 176 x 280 |
| UPC | 193133422716 |
| Weight (kg) | 5.1 |
| Weight (lb) | 11.244 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FOTON | 1425135643004 |
