Description

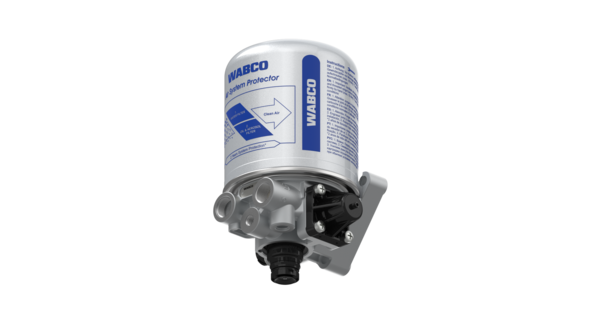

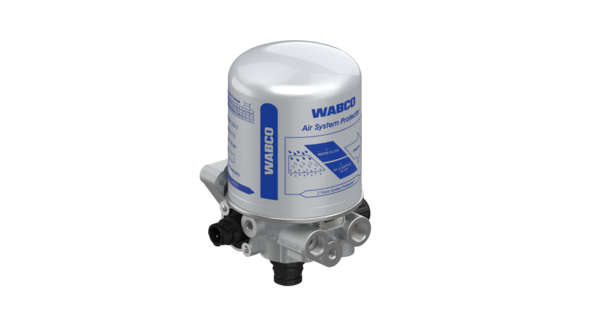

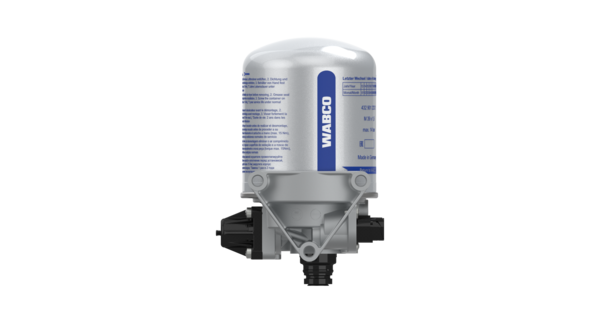

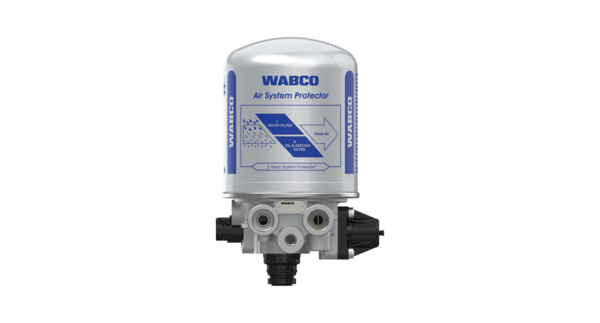

Air Dryer (Single Cannister)
Part Number: 4324101920
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.3949 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.5 bar |
| Exhaust | No (4324070120 retrofittable) |
| Heater | 894 260 049 0 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7 bar |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | M22 x 1.5 JED – 152 |
| Port thread 22 | M12 x 1.5 JED – 152 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171546 |
| Size (mm x mm x mm) | 257 x 167 x 149 |
| UPC | 193133436928 |
| Weight (kg) | 3.519 |
| Weight (lb) | 7.7581 |
OEM Cross References
| Brand | Reference No |
|---|---|
| KENWORTH | S4324101920 |
| KÄSSBOHRER | 82855490000 |
| MERITOR | S4324101920 |
| PACCAR | 1528633 |
| PETERBILT | S4324101920 |
| VOLVO | 20410157 |
| VOLVO | 20553336 |
| VOLVO | 3951836 |
