Description

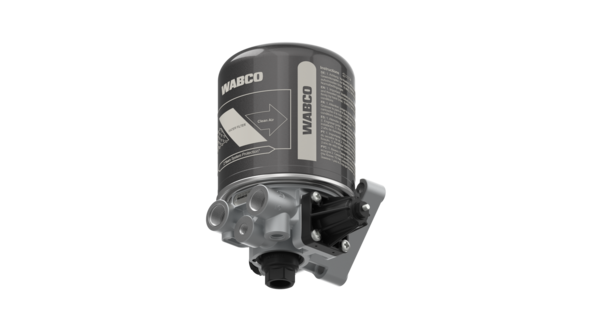

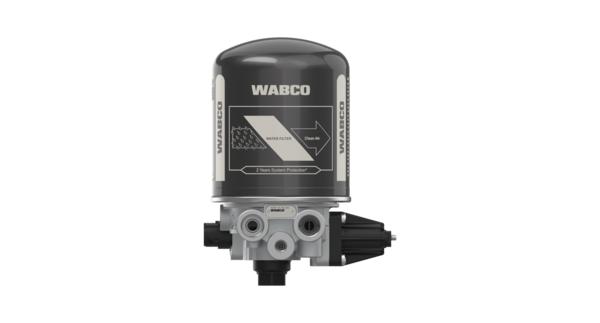

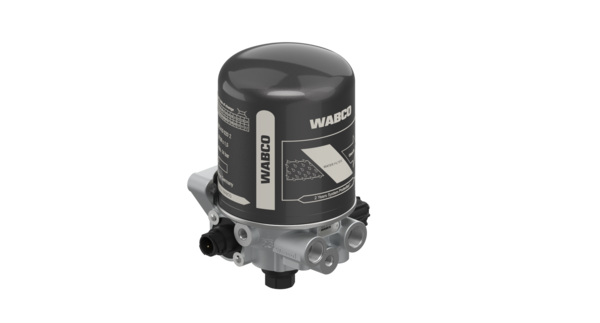

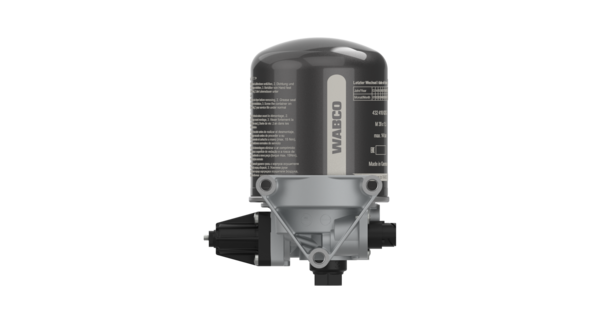

Air Dryer (Single Cannister)
Part Number: 4324101620
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.184 |
| Cartridge type | Desiccant Cartrige |
| Cooling | Compressed air |
| Cut-out pressure | 8.5 bar |
| Heater | 894 260 059 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Mounting | 30 |
| Operational range | 0.7 bar |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | M22 x 1.5 JED – 152 |
| Port thread 22 | M12 x 1.5 JED – 152 |
| Port thread 3 | M22 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Port threads | M22 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 060 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 12 V |
| GTIN | 04057875171461 |
| Size (mm x mm x mm) | 194 x 180 x 263 |
| UPC | 193133257592 |
| Weight (kg) | 3.385 |
| Weight (lb) | 7.463 |
OEM Cross References
| Brand | Reference No |
|---|---|
| AGCO | G945882140010 |
