Description

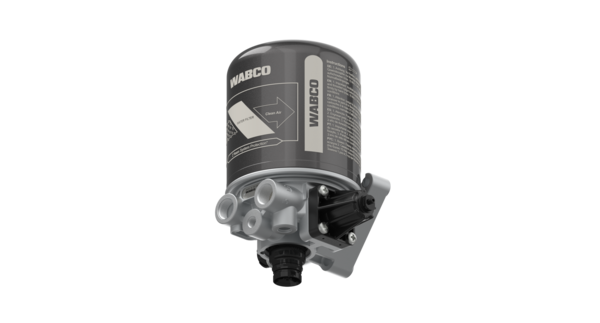

Air Dryer (Single Cannister)
Part Number: 4324100760
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.3831 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 12.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.6 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875171041 |
| Size (mm x mm x mm) | 257 x 189 x 152 |
| UPC | 193133480679 |
| Weight (kg) | 3.578 |
| Weight (lb) | 7.8881 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1518676 |
| IVECO | 41031476 |
| SCANIA | 390854 |
