Description

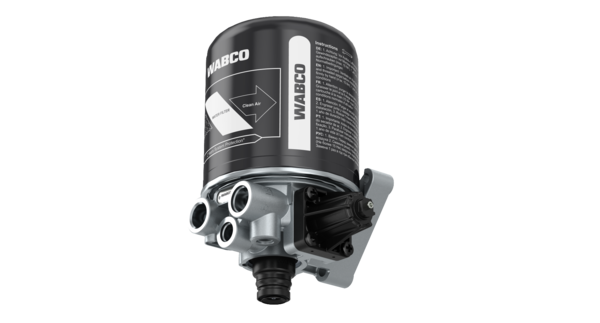

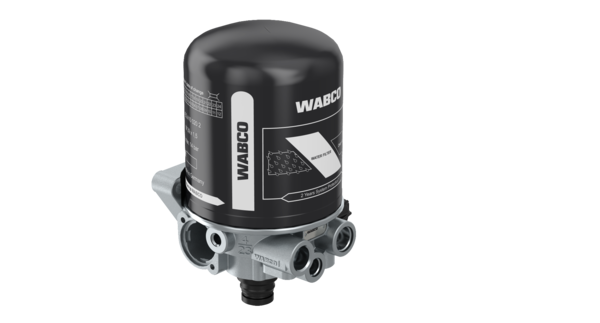

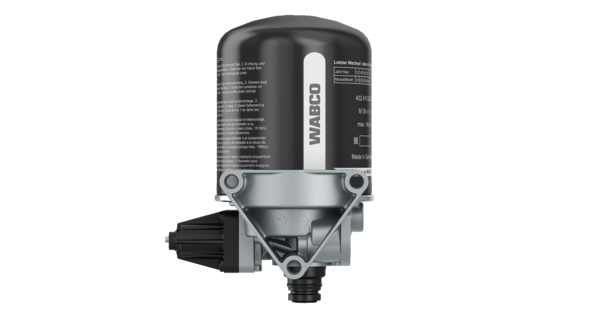

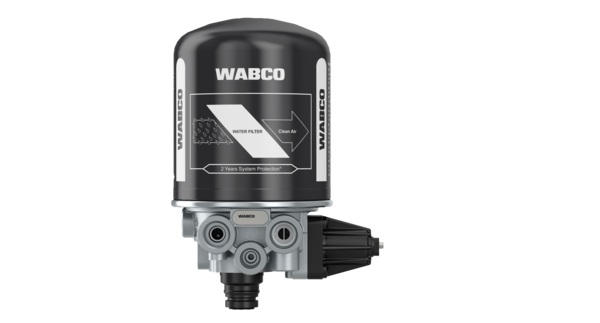

Air Dryer (Single Cannister)
Part Number: 4324101150
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.8278 |
| Cartridge type | Desiccant Cartrige |
| Comments | Ports 21 and 22 for Voss push-in fittings |
| Cut-out pressure | 8.5 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 JED-152 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875171256 |
| Size (mm x mm x mm) | 256 x 179 x 149 |
| UPC | 193133254874 |
| Weight (kg) | 3.578 |
| Weight (lb) | 7.8881 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81521026119 |
| NEOPLAN | 81521026119 |
| PACCAR | 151796B |
