Description

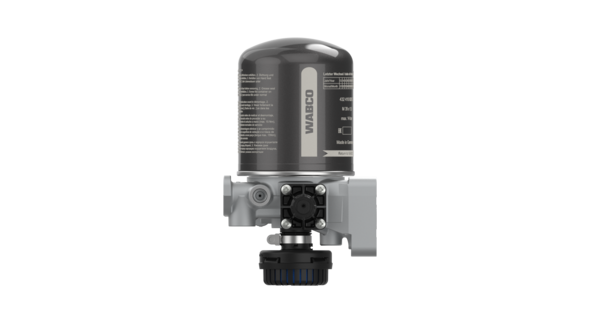

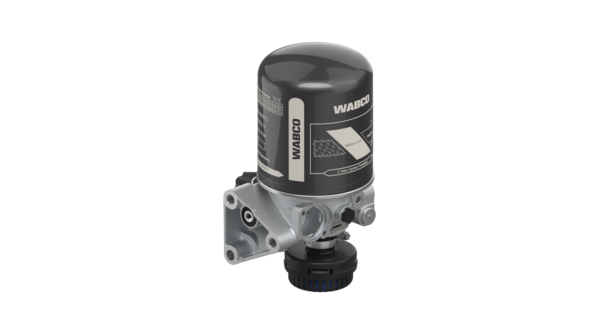

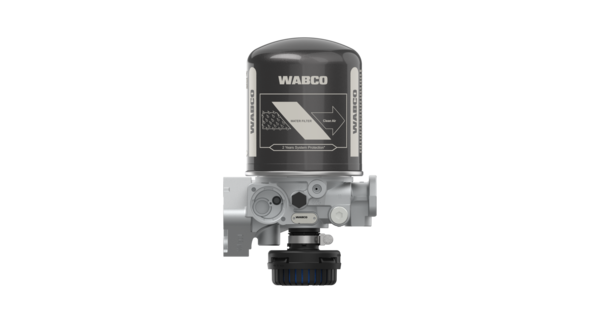

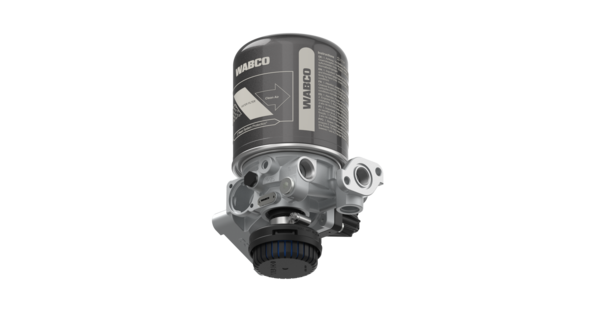

Air Dryer (Single Cannister)
Part Number: 9324000080
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 0 |
| Cartridge type | Desiccant Cartridge |
| Cut-out pressure | 10.0 bar |
| Exhaust | JED-463-0 |
| Heating connection | DIN ISO 3583 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 14.50 bar |
| Operational range | 0.7 bar |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M16 x 1.5 |
| Port thread 3 | JED-463-0 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| GTIN | 7895851026612 |
| UPC | 193133360025 |
| Weight (kg) | 0 |
| Weight (lb) | 0 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MERCEDES-BENZ | 3904317015 |
| MERCEDES-BENZ | A6644317015 |
| MERCEDES-BENZ | A3904317015 |
