Description

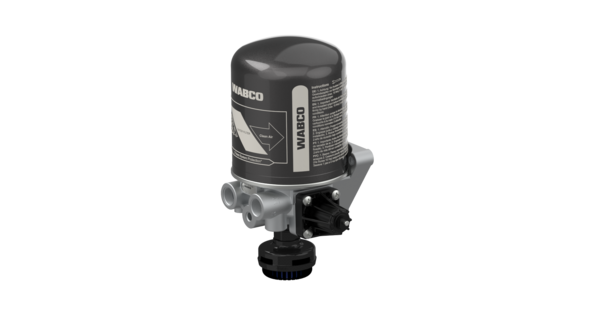

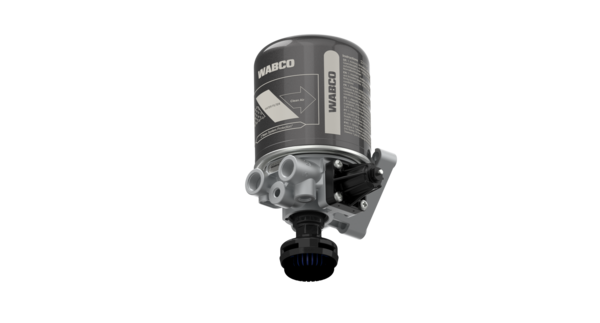

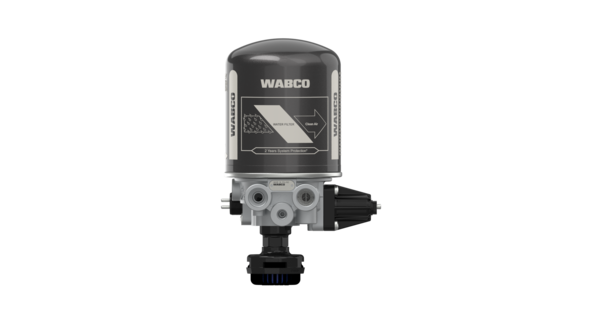

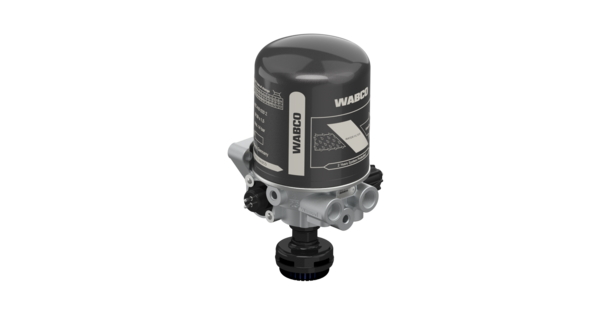

Air Dryer (Single Cannister)
Part Number: 4324100800
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.383 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 9.8 bar |
| Heater | 894 260 040 2 |
| Heating connection | Bayonet |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.6+0.6 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | 432 407 060 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171034 |
| Size (mm x mm x mm) | 194 x 145 x 298 |
| UPC | 193133464419 |
| Weight (kg) | 3.7 |
| Weight (lb) | 8.157 |
OEM Cross References
| Brand | Reference No |
|---|---|
| EVOBUS | A0004302615 |
| MERCEDES-BENZ | A0004302615 |
| MERCEDES-BENZ | 0004302615 |
