Description

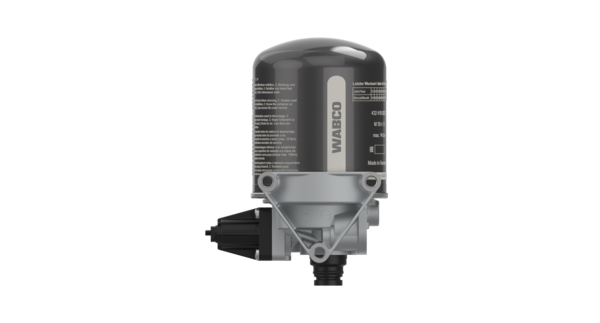

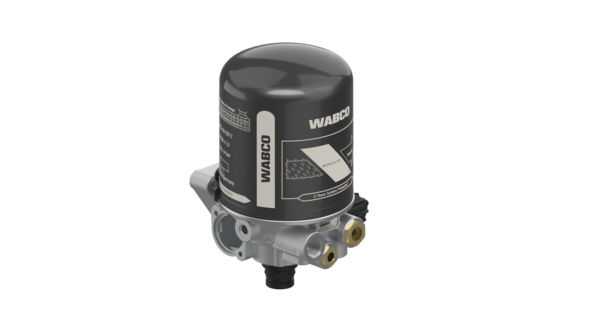

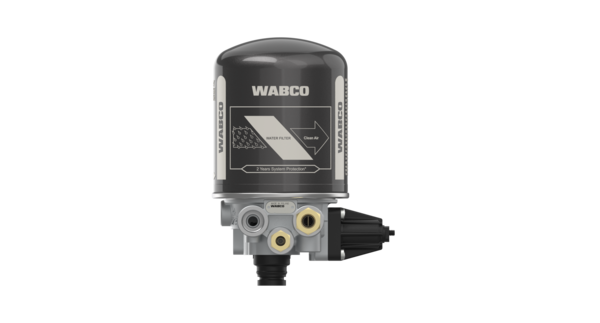

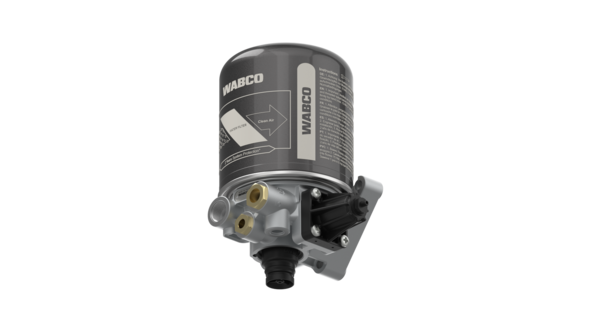

Air Dryer (Single Cannister)
Part Number: 4324100660
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.372 |
| Cartridge type | Desiccant Cartrige |
| Comments | For voss push-in fittings |
| Cut-out pressure | 8.5 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875170969 |
| Size (mm x mm x mm) | 256 x 187 x 154 |
| UPC | 193133479857 |
| Weight (kg) | 3.606 |
| Weight (lb) | 7.9499 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1505219 |
| EVOBUS | A0014315915 |
| MERCEDES-BENZ | 0014315915 |
| MERCEDES-BENZ | A0014315915 |
| PACCAR | 1505219 |
| SCANIA | 390854 |
