Description

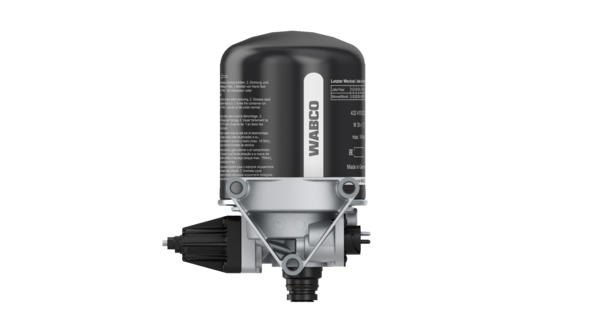

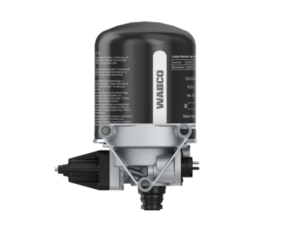

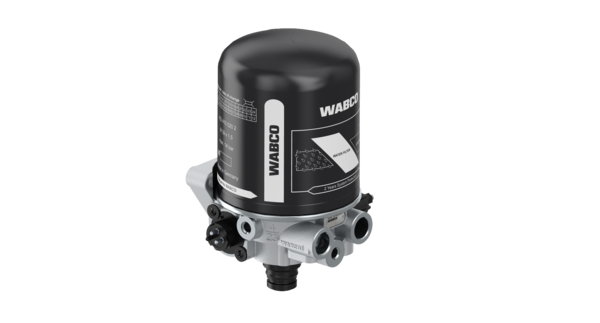

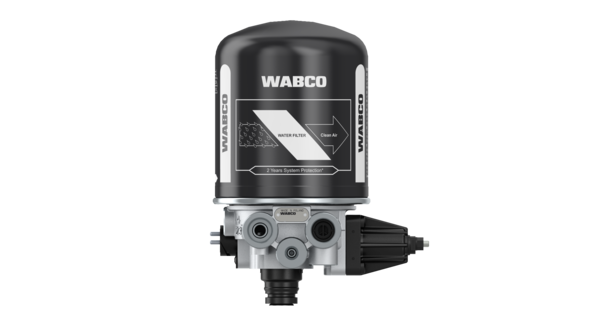

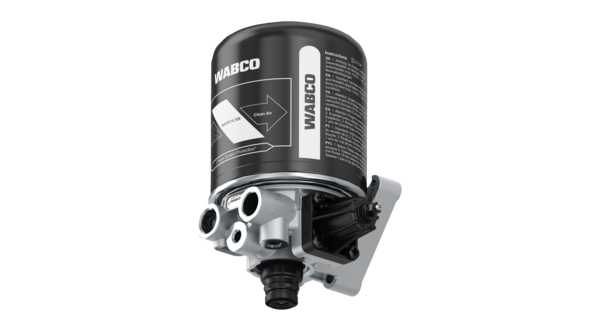

Air Dryer (Single Cannister)
Part Number: 4324111670
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.6471 |
| Cartridge type | Desiccant Cartrige |
| Comments | With silencing (for pipework noises) |
| Cut-out pressure | 12.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 045 2 |
| Heating connection | Bayonet (Schlemmer) 3-pin |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Operational range | 1.3+0.7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171850 |
| Size (mm x mm x mm) | 258 x 195 x 152 |
| UPC | 193133259039 |
| Weight (kg) | 3.601 |
| Weight (lb) | 7.9388 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 82521026024 |
| MAN | 81521026089 |
| SCANIA | 390854 |
