Description

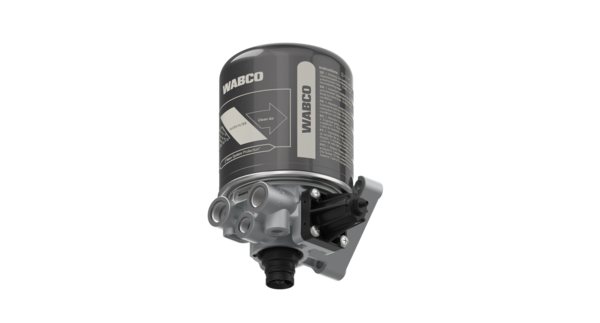

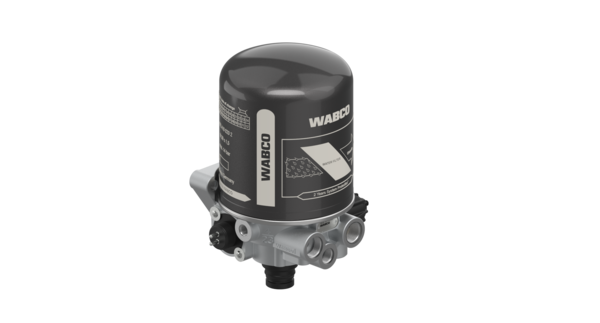

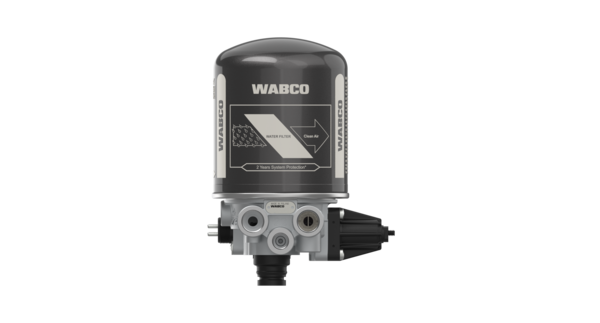

Air Dryer (Single Cannister)
Part Number: 4324100420
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.48 |
| Cartridge type | Desiccant Cartrige |
| Comments | Ports machined for Voss push-in fittings |
| Cut-out pressure | 8.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 4/23 | M16 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875170938 |
| Size (mm x mm x mm) | 257 x 189 x 154 |
| UPC | 193133254461 |
| Weight (kg) | 3.579 |
| Weight (lb) | 7.8903 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517966 |
| EVOBUS | A0004319415 |
| MERCEDES-BENZ | 0004319415 |
| MERCEDES-BENZ | A0004319415 |
| SCANIA | 390854 |
