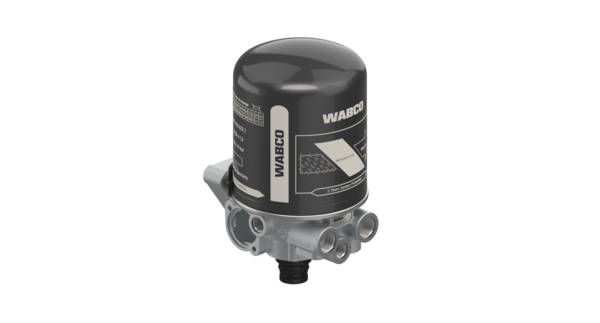

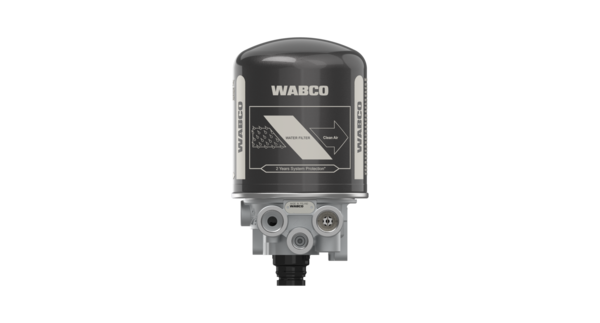

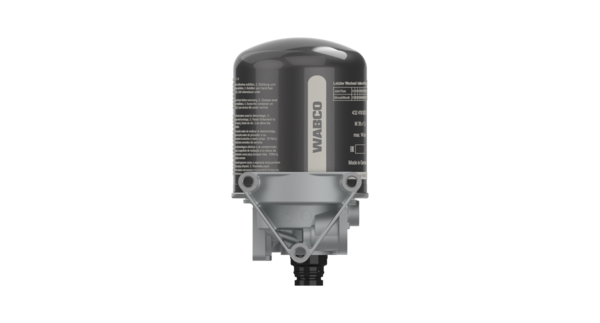

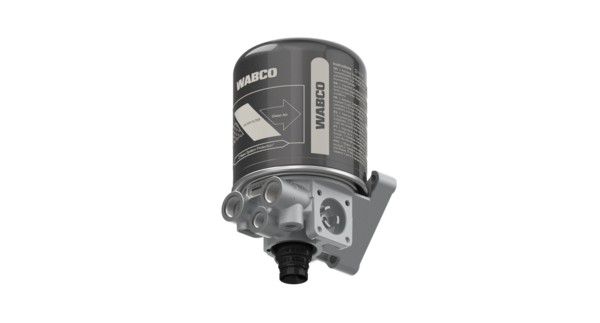

Air Dryer (Single Cannister)
Part Number: 4324210020
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 5.5763 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 13.0 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388-4 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875172604 |
| Size (mm x mm x mm) | 142 x 154 x 255 |
| UPC | 193133257318 |
| Weight (kg) | 3.42 |
| Weight (lb) | 7.5398 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517975 |
| EVOBUS | A0004318015 |
| MERCEDES-BENZ | 0004317115 |
| MERCEDES-BENZ | 0004318015 |
| MERCEDES-BENZ | 0004318315 |
| MERCEDES-BENZ | A0004318015 |
