Description

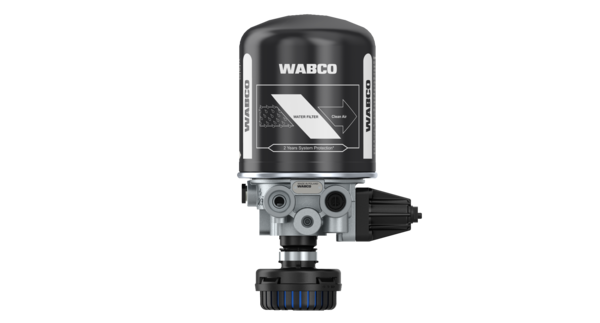

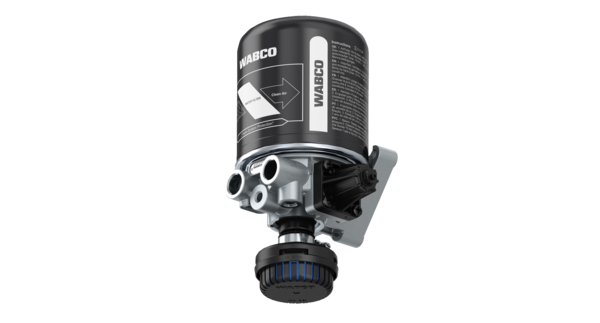

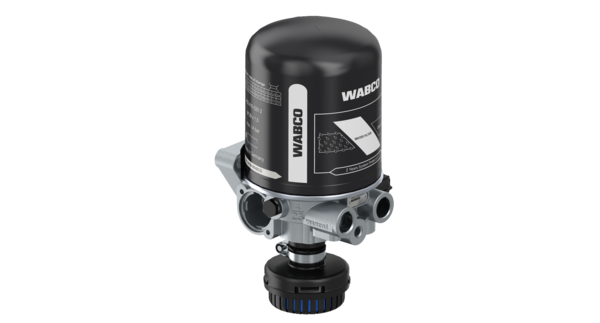

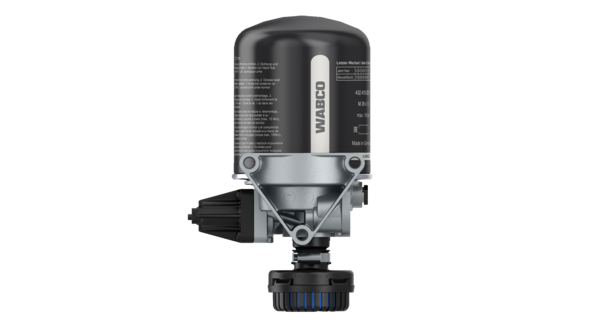

Air Dryer (Single Cannister)
Part Number: 4324100640
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.108 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.2 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | 432 407 012 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 7895851003682 |
| Size (mm x mm x mm) | 298 x 179 x 152 |
| UPC | 193133436881 |
| Weight (kg) | 3.375 |
| Weight (lb) | 7.441 |
OEM Cross References
| Brand | Reference No |
|---|---|
| ASHOK LEYLAND | Z442174840537 |
| ASHOK LEYLAND | 226338 |
| DAEWOO | Z442174840537 |
| FORD | 2TA607349 |
| IVECO | AL202707A |
| JOHN DEERE | AL202707A |
| MAN | 2TA607349 |
| SCANIA | 390854 |
| VW | 2TA607349 |
