Description

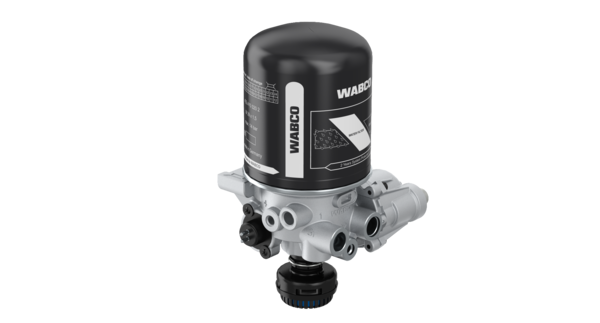

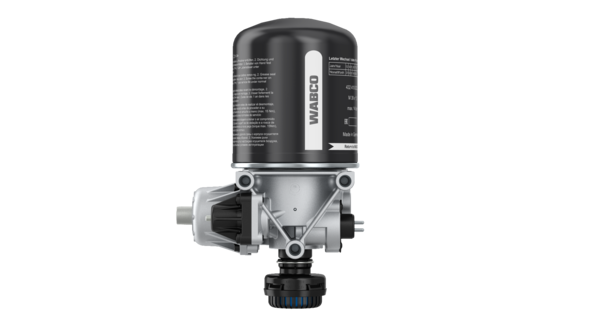

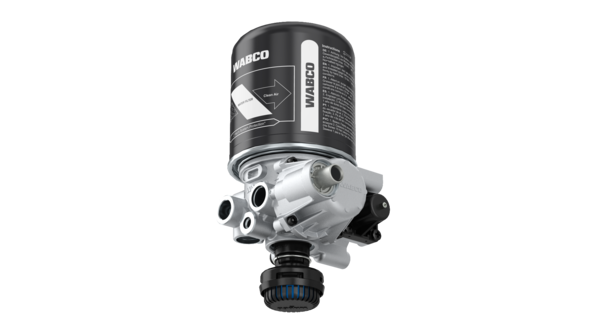

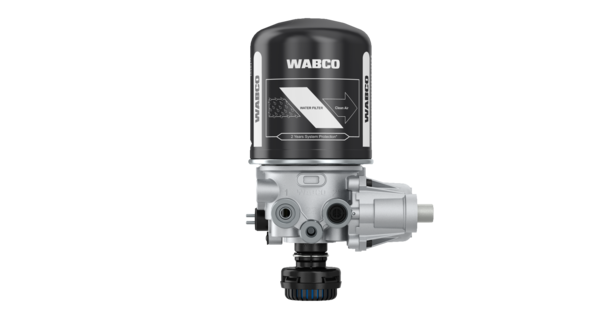

Air Dryer (Single Cannister)
Part Number: 4324150060
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Back flow | 0.4 bar |
| Calculated Volume (dm³) | 9.2462 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.5 bar |
| Exhaust | Union |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Opening pressure | 13.00 bar |
| Operational range | 0.7+0.5 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 JED – 464 |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Silencer | 432 407 070 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875172116 |
| Size (mm x mm x mm) | 190 x 154 x 316 |
| UPC | 193133256465 |
| Weight (kg) | 4.402 |
| Weight (lb) | 9.7047 |
OEM Cross References
| Brand | Reference No |
|---|---|
| DAF | 1517971 |
| MAN | 99100360490 |
| MAN | 85500014554 |
| RENAULT | 5010260351 |
| RENAULT | 5001837100 |
| STEYR | 99100360490 |
