Description

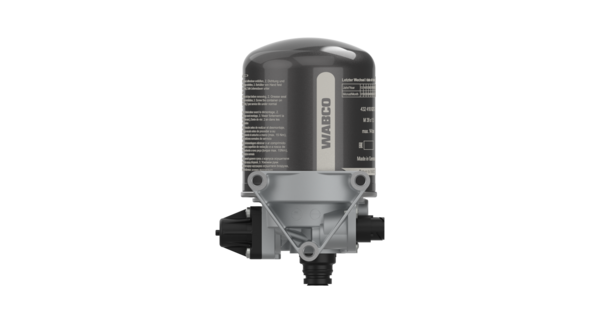

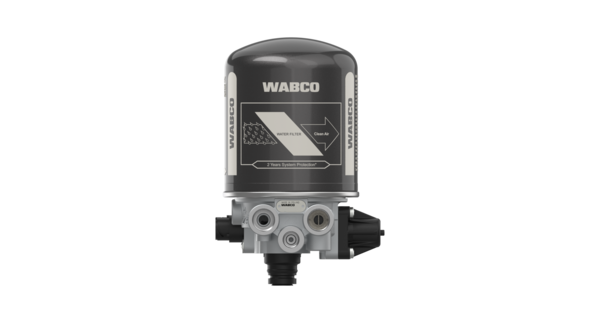

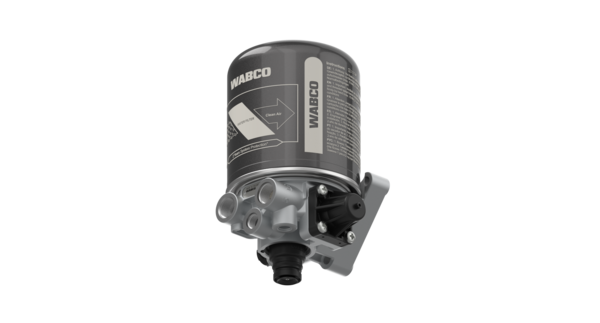

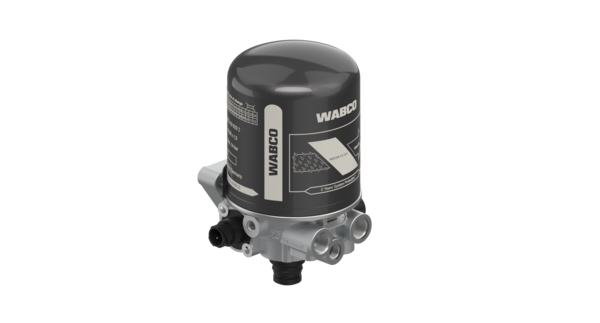

Air Dryer (Single Cannister)
Part Number: 4324101120
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 9.568 |
| Cartridge type | Desiccant Cartrige |
| Comments | Ports 21 and 22 for Voss push-in fittings |
| Cut-out pressure | 12.5 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 049 2 |
| Heating connection | Bayonet DIN 72585-A1-2.1-1-Sn/K2 |
| Max. operating pressure | 13.0 bar |
| Operational range | 1.3+0.7 bar |
| Port thread 1 | M22 x 1.5 JED-388 |
| Port thread 21 | M22 x 1.5 JED – 388 |
| Port thread 22 | M16 x 1.5 JED – 388 |
| Port thread 4/23 | M16 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171201 |
| Size (mm x mm x mm) | 230 x 160 x 260 |
| UPC | 193133258636 |
| Weight (kg) | 3.422 |
| Weight (lb) | 7.544 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MAN | 81521026102 |
| MAN | 81521026105 |
| MAN | 81521026109 |
| MAN | 81521026046 |
| MAN | 81521026047 |
| MAN | 81521026055 |
| MAN | 81521026058 |
| MAN | 81521026061 |
| MAN | 81521026220 |
| MAN | 81521026318 |
| NEOPLAN | 81521026105 |
