Description

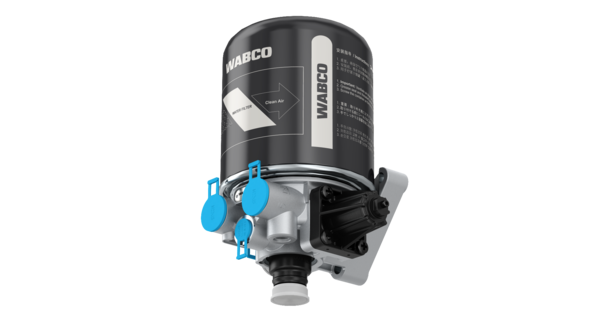

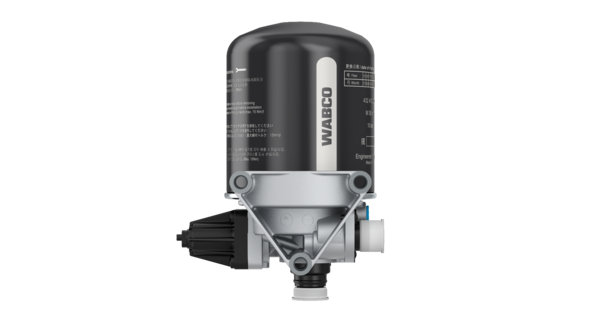

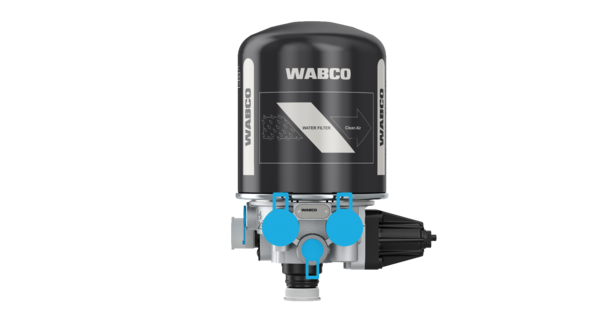

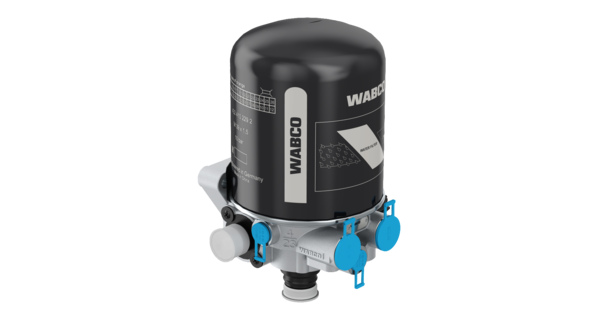

Air Dryer (Single Cannister)
Part Number: 4324100940
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 7.3112 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.1 bar |
| Exhaust | Snap-on contour |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 10.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 04057875171119 |
| Size (mm x mm x mm) | 260 x 190 x 148 |
| UPC | 193133254676 |
| Weight (kg) | 3.705 |
| Weight (lb) | 8.1681 |
OEM Cross References
| Brand | Reference No |
|---|---|
| CAMC | 3511A6DP5-010 |
| FOTON | 1120835680050 |
| FOTON | 13253356F0003 |
| JIEFANG (FAW) | S3511010-Z73 |
| JIEFANG (FAW) | S3511010B4Z |
| SUNWIN | SWB563050133 |
| YUTONG | 3529-00050 |
