Description

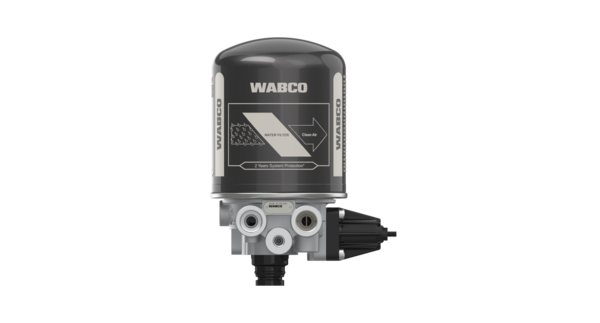

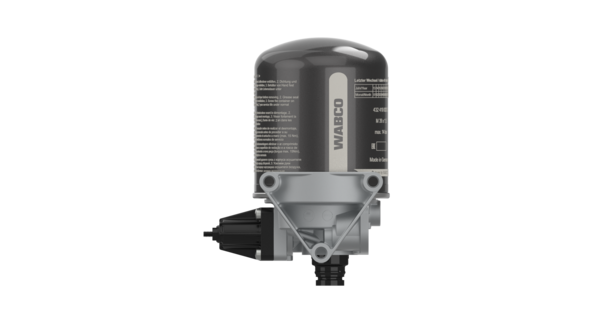

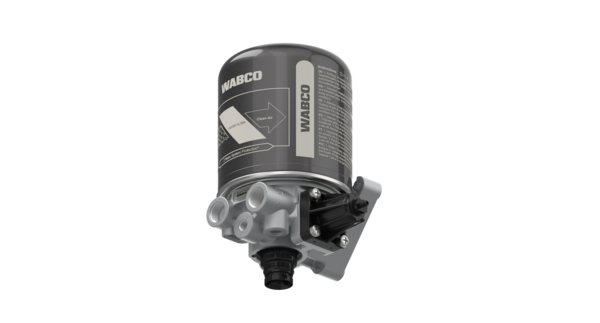

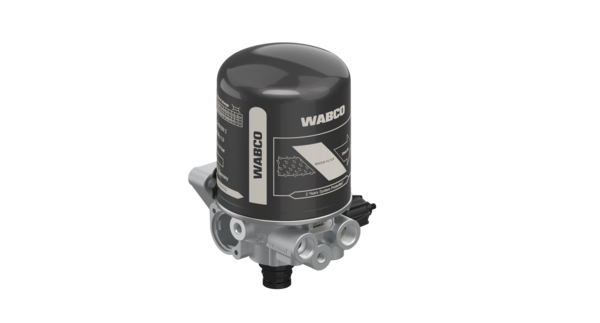

Air Dryer (Single Cannister)
Part Number: 4324100740
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.9652 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 12.5 bar |
| Exhaust | Snap-on contour |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.9+0.7 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | No (432 407 012 0 retrofittable) |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| GTIN | 04057875170990 |
| Size (mm x mm x mm) | 256 x 179 x 152 |
| UPC | 193133420651 |
| Weight (kg) | 3.551 |
| Weight (lb) | 7.8286 |
OEM Cross References
| Brand | Reference No |
|---|---|
| IVECO | 8160470 |
| IVECO | 08160470 |
