Description

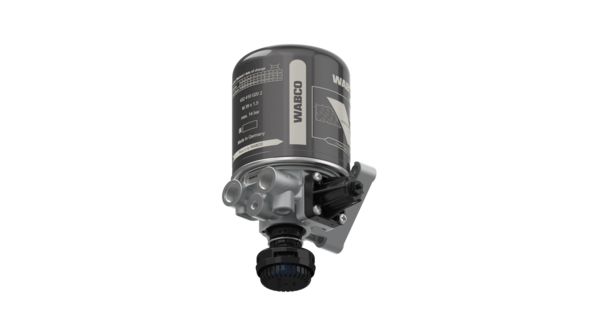

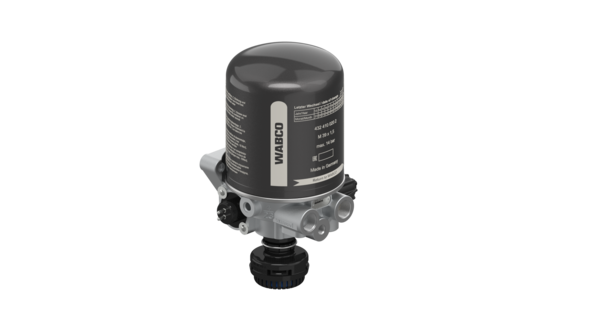

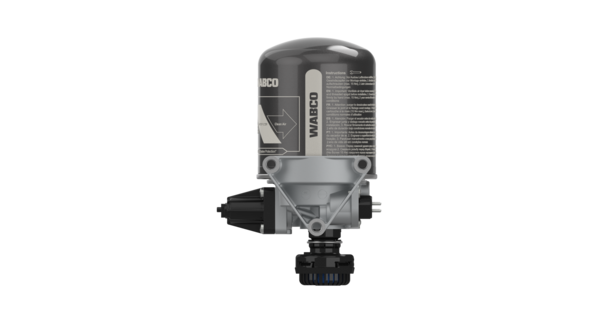

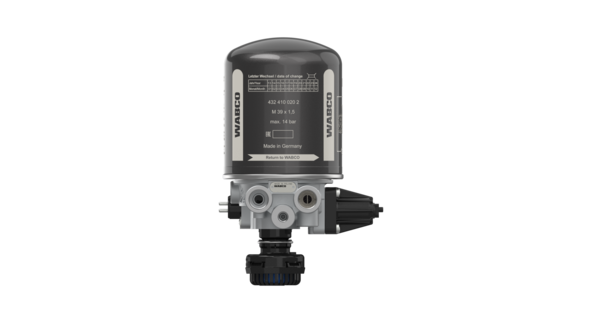

Air Dryer (Single Cannister)
Part Number: 4324100280
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 8.2737 |
| Cartridge type | Desiccant Cartrige |
| Cut-out pressure | 8.1 bar |
| Exhaust | Union |
| Heater | 894 260 040 2 |
| Heating connection | Kostal M27 x 1 |
| Max. operating pressure | 13.0 bar |
| Operational range | 0.6+0.4 bar |
| Port thread 1 | M22 x 1.5 |
| Port thread 21 | M22 x 1.5 |
| Port thread 22 | M12 x 1.5 |
| Port thread 4/23 | M12 x 1.5 |
| Product category | Device |
| Silencer | 432 407 070 0 |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Unloader | Yes |
| Voltage | 24 V |
| GTIN | 7895851077966 |
| Size (mm x mm x mm) | 288 x 189 x 152 |
| UPC | 193133253938 |
| Weight (kg) | 3.662 |
| Weight (lb) | 8.0733 |
OEM Cross References
| Brand | Reference No |
|---|---|
| FAW | 3511010-Q393 |
| FOTON | 1612135600070 |
| FOTON | 1513335609006 |
| FOTON | 11133356F0001 |
| MAN | 99100360454 |
| OTOKAR | 13C0108085AA |
