Description

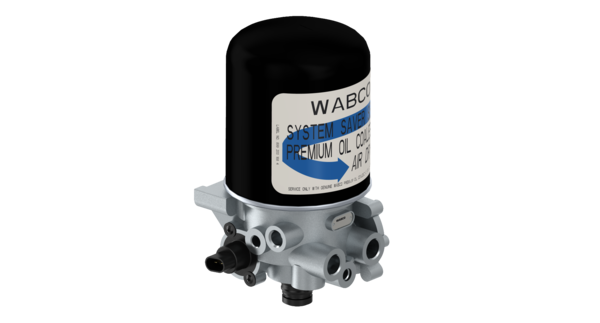

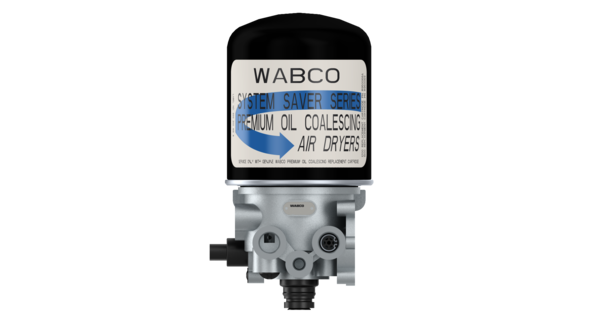

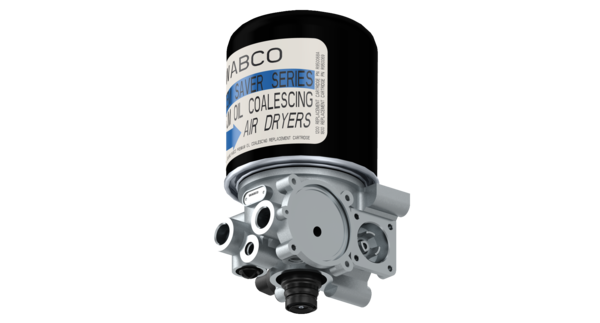

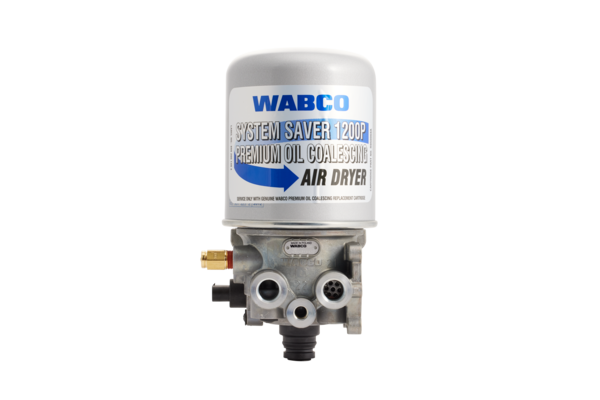

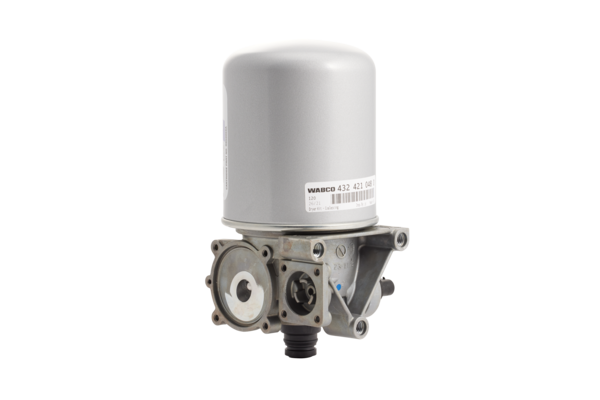

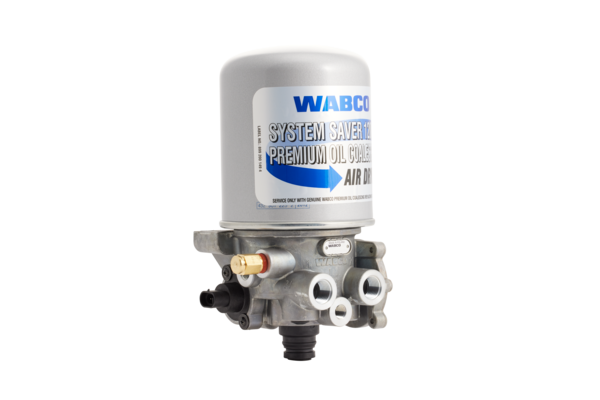

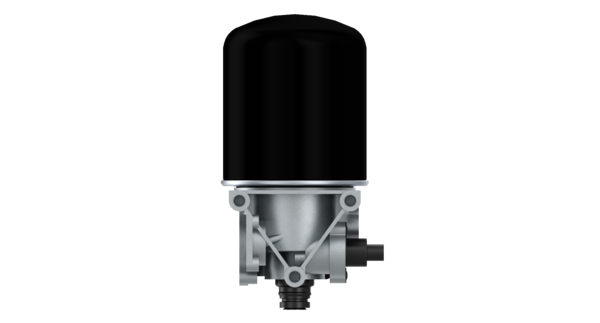

Air Dryer (Single Cannister)
Part Number: 4324210370
Technical Specifications
| Brand | WABCO |
| Part type | Premium original quality |
| Calculated Volume (dm³) | 6.3691 |
| Cartridge type | Desiccant and Oil separator Cartridge |
| Cut-out pressure | 7.9 to 9.0 bar |
| Exhaust | JED-463-0 |
| Heating connection | 280 METRI-PACK NR.1202 0599 |
| Max. operating pressure | 9.0 bar |
| Opening pressure | 11.00 bar |
| Port thread 21 | 1/2″ – 14 NPTF |
| Port thread 22 | 1/4″ – 18 NPTF |
| Port thread 4/23 | 1/4″ – 18 NPTF |
| Product category | Device |
| Technical specification | OE specification |
| Temperature range | -40°C to +65°C |
| Voltage | 12 V |
| GTIN | 7895851076587 |
| Size (mm x mm x mm) | 287 x 146 x 152 |
| UPC | 193133257912 |
| Weight (kg) | 3.803 |
| Weight (lb) | 8.3842 |
OEM Cross References
| Brand | Reference No |
|---|---|
| MACK | 8235-S4324210480X |
| MACK | 6300-432421037R |
| VOLVO | WAB432421037R |
